D2AndroidPort

An Android (arm64) build of d2port, with an on-phone importer for your own Diablo II: Resurrected files (Battle.net or Steam), touch controls laid out like D2Android, widescreen, and the original game's walking, running, monster and missile speeds. Built without the Google SDK/NDK downloads: see android/README.md. Based on d2port at 1dca36c; everything below is d2port's own README.

---

Diablo II for Raspberry Pi (Batocera) fan-made

A Diablo II–style engine written from scratch in C99 + SDL2, to play on Batocera on a Raspberry Pi 3B (and on Windows) with a gamepad: alone, two players on the same screen, or up to 8 players over the local network (for example four Pis with two players each). Besides the story it has its own wave mode, the Echo of Hatred. It uses the graphics, maps, tables, sounds and voices of your own copy of Diablo II: Resurrected, which still ships the original game's 2D files.

This repository does not contain any Blizzard game file. An importer copies from your Diablo II: Resurrected installation only the files the port uses. (The screenshots below show the port running with the game's art, which belongs to Blizzard.)

This is a work in progress. Acts 1 to 5 are fully playable, but there are still bugs to fix (see Known bugs and what is missing). If you find one, please open an issue.

Screenshots

Eight players over the local network: four machines with two each (the party list, top left)	The network lobby: the other machines find the game by themselves
Echo of Hatred: a wave on the Arreat Summit	Shops like the original: selling from the inventory

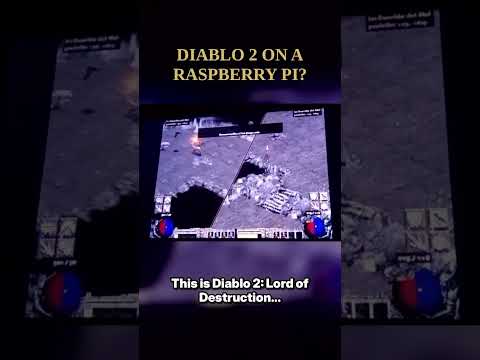

Two players on one screen (Lut Gholein)	The screen splits when they move apart
A fight in Act 5	The Pandemonium Fortress
The Hellforge, after Hephasto	The controls screen

Video: two bots from level 1 in the Echo of Hatred (3 minutes at 3x speed: an Amazon and a Paladin who learn their skills as they level up, until wave 8).

echo-from-level-1-github.mp4

_{Screenshots of the port with the art of Diablo II: Resurrected's 2D mode. Diablo II and its art are © Blizzard Entertainment; shown only to illustrate this non-commercial fan project.}

Contents

1. Installing on Batocera (or on Windows)
2. What is implemented
3. What was written from scratch and what was remade
4. Differences from the original game
5. Known bugs and what is missing
6. Using the source code: build and play on a PC
7. Controls
8. Credits and legal notice (MIT license)

---

Installing on Batocera

For Batocera (importing from a Linux PC or from the Pi). For a Windows PC, see Installing on Windows.

Requirements

• A Raspberry Pi 3B or newer with 64-bit Batocera, v33 or newer.
• Diablo II: Resurrected installed with Battle.net. On Linux it is installed with Wine, Lutris, Bottles or Steam (Proton); the game folder copied from a Windows PC works too.
• 1.7 GB free on the Pi (the port plus the imported files), plus about 190 MB for the cinematics.
• ffmpeg on the computer that runs the importer, for the cinematics (sudo apt install ffmpeg or your distribution's package; Batocera already has it). Without it everything else is imported and the game works, just without cinematics.

The whole game is not copied: only the files the port uses (about 30,000 of them, 1.6 GB of Resurrected's roughly 40 GB), the ones listed in archivos.txt. Your installation is not modified: it is only read.

1. Download the port

From the Releases page, download diablo2-port.zip and unzip it. Inside:

Folder	What it is
batocera/ports/	the port: it goes in Batocera's ports folder
importador/linux/	the importer for Linux (PC)

batocera/ports/ has a hidden folder, .data/, with the game: always copy it together with the rest (in the file manager, Ctrl+H shows hidden files).

2. Import the game files

From a Linux PC

1. Close Diablo II: Resurrected.

2. Run the importer:

   cd diablo2-port/importador/linux
   ./d2port-importar

3. Choose the language (a number from the list of 13; see Language). It looks for the game in the usual places (~/.wine, Lutris' ~/Games/*, Bottles and Steam prefixes): if it cannot find it, it asks for the folder (you can drag it to the terminal). It copies the files to the same package's batocera/ports, in under a minute. Then it converts the cinematics with ffmpeg to a low quality the Pi can play (MPEG-1, 640x288, with the audio of the chosen language): a couple of minutes on a PC.

4. Copy the contents of batocera/ports to Batocera's ports folder, /userdata/roms/ports. For example, over the network:

   scp -r batocera/ports/. root@batocera.local:/userdata/roms/ports/

   (it asks for Batocera's root password), or from the file manager at smb://batocera/share/roms/ports.

You can also import straight to the Pi, if you already copied the port and have Batocera's share mounted:

./d2port-importar --idioma enUS --destino /path/to/share/roms/ports

All the options: --idioma <code> (language: esMX, enUS, esES, deDE, frFR, itIT, ptBR, plPL, ruRU, jaJP, koKR, zhCN or zhTW), --juego <game folder>, --destino <ports folder>, --sin-pausa (do not wait for Enter at the end) and --sin-cinematicas (skip the cinematics).

On the Pi itself (coming soon)

The next release will also bring the importer for the Pi: you copy the whole Diablo II Resurrected folder to a USB drive, plug it into the Pi and, in the Ports menu, choose Import Diablo II (English) or Importar Diablo II (Español) (the other languages, from the main menu after importing). It is already written but not tested on a Pi yet.

3. Play

In Batocera's Ports menu, Diablo II (update the game lists if it does not show up). It is played with a gamepad, alone or two players: the first gamepad used is player 1's. See Controls. To play with other Pis on the same network, LOCAL NETWORK in the main menu (see Local network).

Language

The port has Resurrected's 13 languages: English, Latin American Spanish, Spanish (Spain), German, French, Italian, Brazilian Portuguese, Polish, Russian, Japanese, Korean, Simplified Chinese and Traditional Chinese.

• It is chosen when importing. The importer brings that language's voices and cinematic sound, if your copy of Resurrected has them installed (Battle.net only downloads the voices of the language you play in; otherwise they stay in English).
• It can be changed any time in the main menu, under LANGUAGE: the game restarts in the new language. The voices stay in the imported language; to change them too, import again with the other language.

Saved games, updating and uninstalling

• Saved games are kept in /userdata/saves/ports/d2port: updating the port or importing again does not touch them.
• Updating: copy the new version's batocera/ports over the old one. If the new version uses game files that were not needed before, import again.
• Uninstalling: from /userdata/roms/ports delete Diablo II.sh, the import entries and the .data/d2port folder.

Troubleshooting

• The game does not start: look at /userdata/system/logs/d2port.log. If it says "no encontré data/global/palette/act1", the game files are missing: import them (step 2).
• The importer says files are missing: the list is in .data/d2port/importar.log. It is usually an unfinished game install: open Battle.net, let it finish installing or updating, close it and import again.
• "Could not open the game files": the game is running, the folder is not the Diablo II Resurrected one (it must have .build.info and the Data folder), or the copy is incomplete.

---

Installing on Windows

Windows 10 or 11 (64-bit), with Diablo II: Resurrected installed from Battle.net on the same PC.

1. Download diablo2-port-windows.zip from the releases and extract it anywhere (for example Documents\Diablo II port). Everything stays in that folder: the game files it imports, your saved games (save) and the log (d2port.log).
2. Double-click Import Diablo II (English).bat (or Importar Diablo II (Español).bat, for the Latin American Spanish voices; any of the 13 languages can be chosen later in the menu). It finds Diablo II: Resurrected by itself in the usual Battle.net folders; if not, it asks for the folder (you can drag it into the window). It copies only the files the port uses (about 2.4 GB, a couple of minutes) into data. Close the game and Battle.net first.
   • The cinematics are converted with ffmpeg if it is installed (winget install ffmpeg in a terminal, then import again); without it the game works the same, without them.
3. Double-click d2port.exe. Windows may warn that it is an unrecognized app (it is not signed): More info → Run anyway.

• It plays with a gamepad (any controller Windows recognizes; the first one used is player 1), or with the keyboard and mouse (see Controls). F11 or Alt+Enter switch between window and full screen; the window can be resized.
• The local network works with the Pis, Linux PCs and other Windows PCs that have this same version (see Local network). The first time a PC creates a game, Windows asks whether d2port.exe may use the network: allow it on private networks.
• To update, extract the new version over the old one: data and save are kept.

---

What is implemented

Index

• The acts
• The endgame
• Echo of Hatred
• Classes and skills
• Monsters
• Combat
• Items
• The Horadric Cube
• NPCs, shops and mercenaries
• The world
• The interface
• Two players
• Local network (up to 8 players)
• Cinematics
• Sound, music and voices
• Languages
• Saved games
• Demo and automated tests
• Performance on the Raspberry Pi

The acts

The five acts, complete, in the three difficulties: Normal, Nightmare and Hell. Nightmare opens after defeating Baal in Normal, and Hell after Nightmare, as in the original; each one has its own quests, waypoints and rewards, its monsters (levels, life, damage, resistances, skills and treasure from the tables of that difficulty), shops, mercenaries and the resistance penalty (-40 and -100).

• Act 1: the Rogue Encampment, the Blood Moor, the Cold Plains, the Stony Field, the Dark Wood, the Black Marsh, the Tamoe Highland, the Monastery, the Jail, the Cathedral and the Catacombs, with their caves and cellars, Tristram and the Forgotten Tower. The six quests: Den of Evil, Sisters' Burial Grounds (Blood Raven), The Search for Cain (the Inifuss tree, the Cairn Stones and Tristram), The Forgotten Tower (the Countess), Tools of the Trade (the Horadric Malus and Charsi) and Sisters to the Slaughter (Andariel). With the original effects: light beams in the Den of Evil when it is cleared, lightning all over the graveyard when Blood Raven dies, and the Cairn Stones' pentagram of lightning in a darkened scene before the red portal opens.
• Act 2: Lut Gholein, the Sewers, the desert (Rocky Waste, Dry Hills, Far Oasis, Lost City, Valley of Snakes and the Canyon of the Magi), the Halls of the Dead, the caves, the Claw Viper Temple, the Palace, the Arcane Sanctuary and the seven tombs. The six quests: Radament's Lair, The Horadric Staff, The Tainted Sun, The Arcane Sanctuary, The Summoner and The Seven Tombs (Duriel and Tyrael).
• Act 3: the Kurast Docks (Meshif sails there and back), the jungles (Spider Forest, Great Marsh and Flayer Jungle), Kurast (Lower Kurast, the Bazaar and Upper Kurast), the Causeway, Travincal, the sewers, the six temples and the Durance of Hate. The six quests: The Golden Bird, Blade of the Old Religion (the Gidbinn), Khalim's Will, Lam Esen's Tome, The Blackened Temple (the High Council) and The Guardian (Mephisto).
• Act 4: the Pandemonium Fortress (Tyrael, Cain, Halbu and Jamella), the Outer Steppes, the Plains of Despair, the City of the Damned, the River of Flame with the Hellforge, and the Chaos Sanctuary with its five seals. The three quests: The Fallen Angel (Izual and his spirit), Hell's Forge (Hephasto, the Soulstone and the gems) and Terror's End (the seal bosses and Diablo, with all his skills), and Hadriel on the last bridge. After Diablo, Tyrael opens the last portal: the epilogue plays and it takes you to Act 5.
• Act 5: Harrogath (Larzuk, Malah, Qual-Kehk, Anya, Nihlathak and Cain, and the barbarian mercenaries), the Bloody Foothills, the Frigid Highlands, the Arreat Plateau and the Frozen Tundra with their barricades, the ice caves, the Arreat Summit, Nihlathak's temple, the Worldstone Keep, the Throne of Destruction and the Worldstone Chamber, and the three hells of the red portals. The six quests: Siege on Harrogath (Shenk and Larzuk's socket), Rescue on Mount Arreat (the 15 prisoners), Prison of Ice (Anya), Betrayal of Harrogath (Nihlathak and Anya's personalization), Rite of Passage (the three Ancients) and Eve of Destruction (Baal's five waves, Baal and the ending cinematic).
• The Secret Cow Level: Wirt's body in Tristram drops his leg; with Baal dead, the leg and the Town Portal scrolls in the cube open a red portal in the Rogue Encampment to the Moo Moo Farm, with its herds of Hell Bovines and the Cow King in the middle of the bivouac (killing him closes the level for that character, as in the original).
• The original waypoints of each act, with a tab per act, and the travel between acts (Warriv, Meshif, Mephisto's red portal, Tyrael's portal).
• Quests follow the original logic (D2MOO's QUESTS): their texts, voices, rewards and details, like the Gidbinn altar decoy or the jade figurine carried by the first boss of the act.
• A quest log with the state of each quest (in the panels and in the pause menu).

The endgame

• The Pandemonium Event (Uber Tristram), as in the original:
  • in Hell, the Countess, the Summoner and Nihlathak drop the three keys;
  • in Harrogath, the keys in the cube open a red portal to one of three maps: Matron's Den (Lilith), the Forgotten Sands (Uber Duriel) or the Furnace of Pain (Uber Izual). Each one drops its organ;
  • the three organs open Uber Tristram, with Uber Mephisto, Uber Diablo and Uber Baal and their minions;
  • killing them drops the Hellfire Torch and a Standard of Heroes for each player;
  • the Uber bosses have their own colors, like in the original.
• The Token of Absolution: the four essences (Andariel and Duriel, Mephisto, Diablo and Baal in Hell) make it in the cube, and using it gives back every skill and attribute point. Akara also does it once per difficulty, after the Den of Evil.
• Diablo Clone: sell a Stone of Jordan in Hell and "Diablo walks the earth": the next superunique monster you find is Uber Diablo, who drops Annihilus.
• The Colossal Ancients (Reign of the Warlock):
  • the act bosses drop the five Ancient statues in Hell;
  • the statues in the cube, in Act 5, open the Colossal Summit;
  • there Talic, Korlic and Madawc fight together. They call their spirits, have auras that lower your resistances and get stronger as they lose life;
  • the last one to die drops its Colossal Jewel.
• Terror Zones (Resurrected 2.5, with the Reign of the Warlock additions):
  • they open on each difficulty after defeating Baal there, and can be turned off in the difficulty screen;
  • every 30 minutes (real time) a different zone becomes terrorized. Its monsters are 2 levels above player 1 (up to 45, 71 or 96, depending on the difficulty) and give 25% more experience. They use the "terrorized" treasure classes, and in Hell the unique monsters get one more modifier;
  • a Worldstone Shard terrorizes a whole act for the rest of the game;
  • in Hell, each kill in the zone makes a Herald more likely to come hunting you. Every Herald killed makes the next one stronger, up to tier 5, and they drop the shards and the Sunder charms, which break a monster immunity;
  • the screen shows it all: the messages, "Terrorized" under the level name and under each monster's name, the zone and its minutes in the pause menu, and its waypoints in purple.

Echo of Hatred (a new game mode)

A mode of its own, apart from the story, with the idea of Diablo IV's "Echoing Hatred": endless waves in an arena. In the main menu, ONE PLAYER or TWO PLAYERS and then ECHO OF HATRED (or STORY); it can also be played over the local network:

• You play with a character you already have, with its equipment. The experience, gold and items you get go back to its saved game; its story (quests, acts and waypoints of the three difficulties) is not touched.
• The arena is chosen at random: the Throne of Destruction, the Arreat Summit, Uber Tristram or the Colossal Summit, without their monsters or their exits (no town portals either).
• Wave 1 has monsters of your level, and every two waves they are one level higher (past 99, they get more life and damage). They come in packs from every side and hunt you down; once its quota is killed no more come, and the wave is cleared when every monster is dead. Every ten waves the monsters come from another act, like the campaign.
• The bosses: every ten waves an act boss of the story at the wave's level (Andariel, Duriel, Mephisto, Diablo and Baal; from wave 60 the Pandemonium ones: Lilith, Uber Duriel, Uber Izual, Uber Diablo and the three of Uber Tristram together), and on the sixth wave of each ten a named boss of that act (Blood Raven, the Countess, the Summoner, Izual, Nihlathak...).
• Between waves there are 8 seconds (with a countdown) to spend points and equip what you found; then whatever is still on the ground vanishes.
• More potions: 35% more potions drop than in the story.
• Overrun: if the arena fills up (40 monsters alive, 50 with two players) for ten seconds, the run is over. Dying also ends it (with two players, the one who died comes back on the next wave).
• The pace follows your level, so a new character can play the Echo instead of the story. The time between packs and the overrun countdown are 2.5 times longer up to level 5, then 2.2 (6-10), 1.9 (11-15), 1.65 (16-20), 1.4 (21-30) and 1.2 times (31-40); from 41 to 60 it is the normal pace; from 61 to 80 it is 15% faster and from 81, 30% faster, with one more monster in each pack (with two or more players, their average level).
• Easier at low levels, so a new character can go further: up to level 40 the monsters have less life and damage (40% less at level 1), their level rises one every six waves up to level 15 and one every four up to 30 (never more than one below yours), the bosses have fewer extra levels and champion packs are rarer. With five waves per act, two bots starting at level 1 went from wave 2 to waves 9-12 with these changes.
• The loot matches your level: monsters and the Echo chest drop from the treasure class of your level (+2), and items are no higher than that (Act 5 monsters in an early wave drop Act 1 items).
• Every four waves two shrines appear, there is a well next to the start, and the dead mercenary comes back after each act boss.
• At the end, the Echo chest (more and better items the further you got) and a portal back to the menu. Each character keeps its best wave.

_{Video: two bots that start at level 1 (an Amazon and a Paladin, playing by themselves with their skills and potions), 3x speed, until they fall on wave 8.}

Classes and skills

• The seven original classes (Barbarian, Amazon, Sorceress, Paladin, Necromancer, Assassin and Druid) and Resurrected's Warlock.
• All their skills, with the values of skills.txt and skilldesc.txt, their synergies, animations and effects, and a description of what each level does: Paladin auras, Necromancer curses and minions (skeletons, mages, golems, revives), Druid wolf and bear forms, Assassin traps, charges and shadows, Warlock demons and sigils, and all the rest.
• Attributes (5 points per level), skill points, experience and levels from experience.txt, stamina as in the original.
• The original skill tree, and a Buttons page to choose what each gamepad button does.
• Holding a button keeps using its skill or attack, like holding the mouse button in the original: once each animation ends it is used again, so you do not have to press it over and over.
• The skills with a cooldown in the original (Blizzard, Meteor, Frozen Orb, Fire Wall, Fist of the Heavens, Volcano, Shadow Warrior, the Druid's shapeshifts…) have it: the button darkens until it is ready.

Monsters

• The monsters of each level as in levels.txt, with their graphics, animations and sounds.
• The original AI (from D2MOO) for the monsters of the five acts: skeletons, zombies, ravens, fetishes, spiders, vampires, the High Council, the river tentacles (they submerge and come out), the monsters of Acts 4 and 5, the seal bosses, the Ancients, Nihlathak, Baal's waves and the act bosses (Andariel, Duriel, Mephisto, Diablo and Baal).
• Random bosses as in the original: MonUMin to MonUMax per level; one in five is a pack of champions (champion, ghostly, fanatic, possessed or berserker) and the rest are uniques with an escort (3 to 6) and their modifiers.
• The named bosses (Corpsefire, Bishibosh, Rakanishu, the Countess, Radament, the Summoner…) and the original's special boss deaths.
• As in the original, each Act 4 knight carries one of four skulls in its hands (poison, fire, cold or unholy) and throws that kind, and the aura-enchanted bosses carry a Paladin aura: Lord De Seis always Fanaticism, Hephasto and Bremm Sparkfist a random one.
• Under the name of the monster you attack: undead or demon, champion, its boss modifiers and its immunities, with the game's own texts.
• When a wall, a house or a column is in the way, monsters walk around it to reach you (like the original, which follows the wall when the straight path is blocked) instead of pushing against it.

Combat

• Melee and ranged attacks with the original formulas: attack rating against defense, block, critical strikes, elemental damage (fire, cold, lightning, poison and magic), resistances, life and mana steal.
• Missiles from missiles.txt (skills' and monsters'), with their graphics, sounds and area damage.
• States: poison, frozen, stunned, curses and auras.
• Death and resurrection in town. Dying costs part of the gold you carry (your level %, up to 20%, as in the original); your equipment and the gold in the stash are safe.

Items

• The original loot: treasure classes, magic find and each monster's level. Champions and uniques have their own treasure classes, and in Nightmare and Hell a monster's treasure class moves up its group with its level, as in the original.
• All qualities: normal, low quality, superior, magic (blue), rare (yellow), unique (gold), set (green, with their partial set bonuses) and runewords. Names use the original colors: white for normal items, gems, potions and gold, grey for socketed normal items, gold for uniques, runewords and quest items, orange for crafted items and runes.
• Sockets: gems, runes and jewels; runes in the right order make a runeword. With the cursor on a socketed item you see its sockets and what is in them, laid out as in the original. To socket, A picks up the gem, rune or jewel and A on an item with free sockets (it turns green) puts it in.
• Comparing with what you wear (as in Diablo IV): with the cursor on an item in the backpack, stash or cube that goes where you already wear something, its description shows next to the equipped one (tagged EQUIPPED), with how much damage, defense and block go up or down (green or red). X swaps them: the item you take off lands in the same spot of the backpack under the cursor, so X again swaps back. With two players the descriptions use the small font.
• Rings, amulets, charms, arrows and bolts, throwing weapons, potions (healing, mana, rejuvenation, stamina, antidote, thawing), keys and Town Portal scrolls.
• Strength, dexterity, level and class requirements; the fixed properties of class items.
• Items never wear out and drop already identified: there is no durability or identification, on purpose.
• Town Portal: a scroll (X on it in the inventory) opens a blue portal next to you and its pair in town; you come back through the same one and it closes, as in the original. Each player has their own and anyone can use it. There is no tome: the scrolls stack up to 20 in one slot. New characters start with a scroll, and Akara, Drognan and Ormus sell them (X in the shop fills the stack). The bots use it to go heal and shop.
• Stash: the chest in each town (A next to it) opens tabs of 10x6. With one player it opens in its own panel on the left, with the whole inventory on the right, as in the original: A picks an item up and puts it wherever you want, and X moves it between the backpack and the stash. With two players each one has half the screen, so it opens in place of the equipment, with the backpack below. You start with one tab and get one more for each act you reach; more can be bought with gold, each three times the price of the previous one (50,000, 150,000, 450,000...), up to five. Gold can be stored too (it is not lost when you die).
• Inventory, equipment (two hands, shield and quiver) and belt as in the original, handled with the gamepad. The equipment shows on the character.

The Horadric Cube

• It comes from the chest on the third level of the Halls of the Dead, as in the original.
• The cubemain.txt recipes: gems, runes, potions, sockets, upgrades, magic items and crafting.
• A cube guide in the pause menu, with the recipes by category and what each one gives (runewords included).

NPCs, shops and mercenaries

• The NPCs of the five towns, with their dialogs and voices in the original order.
• Shops as in the original: the vendor's window on the left and your inventory on the right (with two players, one at a time). LB / RB switch the tabs; the last one, Sell (or Select), takes the cursor to your backpack, where A sells.
• Gambling (Gheed, Elzix, Alkor, Jamella, Nihlathak and Anya), Akara and Fara heal, Charsi imbues (makes an item rare), Larzuk sockets an item, Anya personalizes one, and Cain.
• Mercenaries: Kashya's rogues (Act 1), Greiz's desert warriors (Act 2), Asheara's Iron Wolves (Act 3) and Qual-Kehk's barbarians (Act 5), with their skills and auras; you can give them equipment and resurrect them.

The world

• The original maps (.ds1), and the mazes and outdoor areas generated at random like the original does (D2MOO's DRLG).
• No loading screens between areas: each act is a single map, and areas are built and released one by one as you walk.
• The original collision (the 16-bit masks of each tile) and 8-direction pathing. Since movement here is continuous (the original stops characters on subtile centers), players also keep half a subtile away from the drawn thickness of walls, so they don't stand on top of wall bases and corners.
• The original lighting, day and night in the towns, and the roof of the building you are in is not drawn (as in the original), including the thatched huts of the Kurast Docks.
• Automap with the explored areas, the players, the mercenary, the waypoints and the exits.
• Objects you can use with A, as in the original (D2MOO's ObjMode.cpp): chests (locked ones take a key; the Assassin opens them without one), caskets, urns, barrels (some explode), corpses and hidden stashes, weapon racks and armor stands, bookshelves, shrines (healing, mana, the timed ones like armor, combat, resistances, skill and experience, and portal, gem, fire, monster...) and wells. Some are trapped (lightning, fire, poison, nova, or monsters inside). Besides the ones in the original maps, each room gets the random objects of its level (ObjGrp of levels.txt and objgroup.txt). What you opened stays opened for the whole game, also when you come back to an area.

The interface

• The original interface (life and mana orbs, experience bar, belt, monster name and life), at 800x600 like the original.
• Icons of what is affecting you (buffs, auras, shrines, potions, poison, cold and curses), with the seconds left, above the middle of the bar.
• Inventory, skills, buttons, character, mercenary and quest panels, designed for the gamepad (Select opens, Y goes to the next one; Select + Y goes straight to the skills and Select + X to the attributes).
• A does the right thing next to something: talk, pick up, use stairs, a portal or a quest object.
• A pause menu with the volume, "always run", the controls, the cube guide, the quests and save and exit.
• A controls screen (in the main menu and the pause menu): the gamepad drawn with what each button does, and the keys of both players.
• The original chat phrases (Help!, Follow me, Thanks…) from a menu.

Two players

• Two players on the same screen, each with a gamepad (or the keyboard).
• With two gamepads connected, both choose their characters at the same time on the character screen, each with its own cursor (and a new character's class is chosen in its own box); the game starts when both are ready. With one gamepad, they choose one after the other.
• A single camera while they are close; when they move apart, the screen splits along a line perpendicular to the one joining them, and joins again when they get together. Each player's inventory and other panels open on the side of the screen where that player's view is.
• Quests, bosses and experience count for both.
• As in the original, each extra player gives the monsters 50% more life and experience, and they drop more often.

Local network (up to 8 players)

• LOCAL NETWORK in the main menu: choose how many play on this machine (one or two), then CREATE GAME (the story or the Echo of Hatred) or JOIN A GAME: the others find it by themselves on the same network (Wi-Fi or cable), with its mode. Each machine has 1 or 2 players (with 2, its own split screen): up to 8 players, the original's maximum, for example four Pis with two players each.
• Everybody plays with a character from their own machine, and each machine saves its own characters.
• Only the controls travel over the network: every machine plays the whole game and they all compute exactly the same, tick by tick. Every second they compare a summary of the game; if one ever differs, the game stops and everybody's characters are saved.
• As in the original, with more players the monsters have 50% more life and give 50% more experience per extra player, and drop more often.
• Pis, Linux PCs and Windows PCs can play together: they all compute the same numbers, bit by bit.
• Limits: all machines must have the same version of the port (the game says so if one does not). Everybody is in the same act, nobody can join a game that already started, and in a network game the pause menu does not stop the game.

Cinematics

• The original cinematics, in low quality so the Pi plays them smoothly (MPEG-1 640x288 decoded with pl_mpeg, colors converted by the GPU), with the audio of the imported language (English if your copy of the game does not have it). Any key, gamepad button or mouse click skips one. The Blizzard logos play with their sound (the classic logo videos in D2R are silent, so the importer also converts D2R's logo video, the same two logos with their sound).
• They play where the original plays them (the server's packet 0x61 in D2MOO's QUESTS_ActChange and QUESTS_HellPortalActChange):
  • the Blizzard logos and the introduction when the game starts;
  • Act II: the first time you travel east with Warriv;
  • Act III: the first time you sail east with Meshif;
  • Act IV: the first time you enter Mephisto's red portal;
  • the epilogue: when you enter the last portal after Diablo;
  • the ending: when you enter Tyrael's portal after Baal.
• Cinematics in the main menu, like the original: watch again the ones you have already seen. The expansion's introduction is always there: the original never plays it during the game either.

Sound, music and voices

• The original sounds (sounds.txt, monsounds.txt), the music of each area and the ambient effects.
• The NPC voices and the class lines, in the imported language (English if your copy of the game does not have that language's voices).

Languages

• Resurrected's 13 languages, chosen when importing or in the main menu: the game texts come from Resurrected in that language, and the engine's own texts (menus, help, descriptions) are translated into each one.
• Latin-script languages use the original's fonts (Polish with its own letters). Russian, Japanese, Korean and Chinese use Resurrected's TrueType fonts, drawn at the size of the original ones.
• Magic, rare and champion names are built in each language's word order, with the original's name formats.

Saved games

• Six saved games, with the character, equipment, gold, mercenary, quests, waypoints and act.

Demo and automated tests

• Demo: if the main menu is left alone for 10 seconds, two bots create characters (a different pair of classes each time) and play the whole campaign by themselves: Acts 1 to 5 in Normal, then Nightmare and Hell, with the same two characters and all their skills (D2_DEMO_ACT=1 to 5 plays only that act).
• Automated tests (--autotest act1 to act5): two bots play each act from start to end, every quest step, with 1 and 2 players. With D2_ECO=1, --autotest eco plays the Echo of Hatred: the waves with each boss, ending the run, the chest and the portal back. Today all five pass (68, 63, 74, 36 and 62 steps), as does the skills test (24 of 24); the first three were also checked in English.
• Network tests: the same tests with several copies of the port joined over the network (D2_NET_HOST / D2_NET_JOIN), each machine with its own bots: they compare the state of the game every second. Act 1 with 4 players on 2 machines passes (68 steps) without ever differing, as does the Echo of Hatred with 2 machines; 8 players on 4 machines, and a real Pi with three emulated ones, also stay identical.

Performance on the Raspberry Pi

• The logic runs at 25 ticks per second like the original, with interpolation when drawing.
• On a Pi 3B: the logic takes 0.8 to 1.2 ms per tick and drawing 8 to 11 ms per frame. Areas are prepared on a worker thread so walking does not stall.
• A whole act fits in the Pi's 1 GB of memory.
• Over the local network with 8 players, a Pi 3B takes about 3 ms of logic per tick while they play together, and 7.5 to 12 ms in the worst case (each one in a different area), with up to 418 MB of memory. Each machine sends about 23 KB/s.

---

What was written from scratch and what was remade

Written from scratch

All the code is new, in C99 + SDL2: it does not use any Blizzard code. The engine reads the game's formats (palettes, DC6, DCC, COF, DT1, DS1, animdata.d2, the .txt tables, Resurrected's CASC storage) and does everything else: 8-bit palette rendering with light tables, map generation, collision, AI, combat, items, interface, sound, saving and the bots.

What comes from the original

From your copy of Resurrected: the 2D graphics, the maps, the game tables, the sounds, the music, the texts and the voices.

Remade to be faithful to the original

Several parts were remade following D2MOO (the reconstruction of the original game's code) so that they behave the same:

• Random map generation (mazes, the desert, the jungles, Kurast, the Act 4 and Act 5 outdoors, the ice caves and the Arcane Sanctuary with its teleport pads), and how each preset piece is laid down (its KillEdge and FillBlanks from lvlprest.txt).
• Collision, copying the 16-bit masks of each tile.
• The AI of the monsters of the five acts.
• How bosses, champions and their escorts spawn.
• The quests, with each of their steps.
• Loot, gambling and item generation.
• The drawing order of walls, roofs and characters.

What differs from the original, on purpose or because it is not done yet, is listed in the next section.

---

Differences from the original game

The port plays like Diablo II with the expansion (the logic follows D2MOO), but these things are different. Most of them were chosen on purpose, to play comfortably on a Raspberry Pi with a gamepad.

The platform and the presentation

• Only the classic 2D graphics, at 800x600. Resurrected's HD world is 3D (models, textures and skeletons, about 30 GB) and does not fit in a Pi 3B.
• Played with a gamepad: A does the right thing next to something (attack, talk, pick up, use a waypoint, stairs, a portal or an object), a Buttons page chooses what each button does, the panels are cycled with Select and Y, the inventory and the shops are handled with the d-pad, and the chat phrases are chosen from a menu.
• Two players on the same screen, with a split screen when they move apart. There is no online, LAN or Battle.net play.
• No loading screens: each act is a single map, built and released area by area as you walk.
• The cinematics play in low quality (MPEG-1, 640x288) so the Pi can decode them.
• Six saved games, and no Hardcore mode.
• The language is chosen when importing or in the main menu. The voices are those of the imported language.
• The game tables are Resurrected's current ones, not those of the old 1.14 version: for example, every runeword can be made outside the ladder (patch 2.4), and the mercenaries have their newer skills.
• The Warlock, Resurrected's new class, is playable too. He is drawn with the classic sprites Resurrected ships for him (the Necromancer's), and his skill icons are built from the look of each skill (Resurrected only has HD icons for him).

Gameplay changes, on purpose

• Faster movement: walking is 10% and running 20% faster than in the original, for the players and for the monsters (whose walking animation keeps pace, as in the original).
• Faster missiles: arrows, spells and monster missiles fly about a third faster than in the original, which moves them at 75% of their missiles.txt speed.
• Potions:
  • each belt potion has 3 sips (the drunk part of the liquid darkens and the belt shows how many are left);
  • 35% fewer potions drop from monsters and chests (in the Echo of Hatred, 35% more than that);
  • they stack up to 10 per backpack slot (the original does not stack them); they go to the belt and the cube one at a time;
  • when a belt potion runs out, one from the backpack takes its place; if the belt has none of the kind you ask for, you drink from the backpack;
  • each belt slot has its own direction on the d-pad.
• Keys stack up to 20 (12 in the original).
• Item comparison: the side-by-side comparison with the equipped item and the X swap in the inventory come from Diablo IV.
• No durability and no identification: items never wear out (there is no repair) and they drop already identified, so there are no Scrolls or Tome of Identify and Cain does not identify. Bookshelves give Town Portal scrolls instead of Identify scrolls.
• No Tome of Town Portal: Town Portal scrolls stack up to 20 in one slot (X on them opens the portal). Old saved games turn a tome into its charges as scrolls, and the Cow Level opens with Wirt's leg and a stack of Town Portal scrolls in the cube instead of the tome.
• The stash has tabs of 10x6: one at the start, one more for each act you reach, and up to five more bought with gold (50,000, then three times the previous price). Gold can be stored in it.
• Dying: there is no corpse to go back for; you keep your equipment. You lose your level % (up to 20%) of the gold you carry; the gold in the stash is safe.
• The mercenary follows closer and at your pace.
• More information on screen: the life and mana numbers above the orbs, the icons of what is affecting you (buffs, auras, shrines, potions, poison, cold and curses) with the seconds left, and the quest log and a cube guide (every recipe and runeword, by category) in the pause menu.
• Inventory shortcuts: RB drops the item under the cursor to the ground and LB sorts the backpack; there is an "always run" option.
• Walls: characters move continuously here (the original stops them on subtile centers), so players keep half a subtile away from the drawn thickness of walls, so they never stand on top of a wall's base.

The endgame

• Diablo Clone: in the original he only came out on Battle.net, when the realm's servers counted enough Stones of Jordan sold by everybody. Here, selling one in Hell is enough.
• Terror Zones: the original's servers choose the order of the zones. Here the order comes from the seed in Resurrected's data, so it is not the same as on Battle.net. Each cycle of 34 turns goes through every zone. The Herald and Colossal Ancient rules come from the patch notes and guides, because that code is not public.
• Sunder charms break the immunity for everyone's damage in the game (both players, their pets and the mercenaries).
• Local network: the original's games are one server and its clients. Here every machine plays the whole game and only the controls travel (all of them compute the same), which is lighter for a Pi. Up to 8 players, as in the original, but all in the same act.
• Echo of Hatred is not in Diablo II: it is this port's own mode, with the idea of a Diablo IV mode (its exact rules are that game's). The waves, bosses and rewards follow the port's own rules, made with Diablo II's monsters, bosses, shrines and chests.

Simplified or not done yet

• Usable objects: there are no room themes (rooms full of barrels or weapon racks); the exploding and poison shrines only do their damage (no throwing potions); the Enirhs shrine shows up as a gem shrine; the monster shrine turns the nearest monster into a random boss with an escort.
• The cold Iron Wolves do not cast Chilling Armor.
• In Act 2, the secondary border of some areas is missing.
• See also Known bugs and what is missing.

---

Known bugs and what is missing

There are still bugs to fix. The automated tests pass, but not many people have played the game yet: there are surely more bugs than the ones listed here. If you find one, please open an issue with what happened and, if you can, the d2port.log.

Known bugs:

• On a Pi 3B there can be a stutter when entering the biggest areas of Act 3 (Spider Forest, Great Marsh): building them takes almost 100 ms.
• Some character lines are silent in Spanish: Resurrected does not ship that audio in Latin American Spanish.
• Many engine messages and the developer notes are written in Spanish first. The translations of the engine's own texts into the other 12 languages were made for this port (Blizzard's texts come from the game): some may be missing or read oddly. Corrections are welcome (tools/lang/<language>.txt).

What is missing:

• What is listed under Simplified or not done yet.
• The importer for the Pi (written, not tested yet).
• Local network play was tested with one real Pi, Pis emulated on a PC, Linux PCs and Windows, also all mixed (the real Pi hosting a Linux PC and a Windows PC over Wi-Fi, 6 players), not yet between two real Pis or two Windows PCs with people playing.

---

Using the source code: build and play on a PC

The same importer injects the game files into the source tree's data/ folder, which git ignores. It only copies the files listed in tools/archivos-del-juego.txt, not the whole game.

# Linux (Ubuntu/Debian): the compiler, SDL2 and zlib
sudo apt install build-essential cmake git libsdl2-dev zlib1g-dev
# CascLib, to read Resurrected's files
git clone https://github.com/ladislav-zezula/CascLib ~/src/CascLib
cmake -S ~/src/CascLib -B ~/src/CascLib/build -DCMAKE_BUILD_TYPE=Release \
      -DCASC_BUILD_SHARED_LIB=OFF -DCASC_BUILD_STATIC_LIB=ON
cmake --build ~/src/CascLib/build -j
# The port and the importer
cmake -S . -B build -DCMAKE_BUILD_TYPE=Release
cmake --build build -j
./build/d2port-importar      # choose the language; it finds the game and copies to data/
./build/d2port

The importer looks for Resurrected by itself (in Wine, Lutris, Bottles or Steam prefixes; under WSL, the Windows one) and asks if it cannot find it. The importer from the release package works too, with --destino <source folder>.

For the Pi (from Linux or WSL, with the cross compiler; scripts/setup-wsl.sh installs it):

cmake -S . -B build-pi -DCMAKE_TOOLCHAIN_FILE=cmake/aarch64-linux-gnu.cmake
cmake --build build-pi -j
# Windows (from Linux or WSL): sudo apt install mingw-w64, and SDL2-devel-2.30.x-mingw.tar.gz
# from github.com/libsdl-org/SDL (releases) extracted in ~/sdl2-mingw
cmake -S . -B build-win -DCMAKE_TOOLCHAIN_FILE=cmake/mingw-w64.cmake \
      -DSDL2_DIR=$HOME/sdl2-mingw/SDL2-2.30.12/x86_64-w64-mingw32/lib/cmake/SDL2
cmake --build build-win -j --target d2port
bash scripts/package-batocera.sh     # dist/ports, with the game files (for your own use)
bash scripts/build-importador.sh     # the importer for Linux, the Pi and Windows
bash scripts/package-release.sh      # publicar/: the packages without Blizzard files

How each part works, the tools, the tests and the debug variables are in the developer notes (in Spanish, like the code comments). The plans of each act are in docs/plan-acto2.md, docs/plan-acto3.md, docs/plan-acto4.md and docs/plan-acto5.md, and the difficulties in docs/plan-dificultades.md; the measurements on the Pi, in docs/rendimiento.md.

---

Controls

Action	Player 1	Player 2
Move (walking)	Left stick, WASD or holding the left mouse button	Left stick or arrow keys
Run (hold; with "Always run" on, it walks)	RT / R2, or left Shift	RT / R2, or right Shift
A button: attack or skill, pick up an item, talk (hold it to keep attacking)	A or Space	A or Enter
B, X and Y buttons: skills (or Throw); hold one to keep using it	B, X, Y or E, R, F	B, X, Y or J, L, O
Drink the potion of a belt slot (each slot shows its arrow)	D-pad ◀ ▲ ▶ ▼, or 1 to 4	D-pad, or 7 to 0
Healing / mana potion (the first one in the belt)	LB / LT	LB / LT
Stamina potion	Press the left stick (L3)	L3
Automap	RB / R1, or Tab	RB / R1
Phrases (Help!, Follow me, Thanks…): open the list / choose / say / close	Press the right stick (R3) or C / d-pad ▲ ▼ / A / B (you can keep walking)	R3 or N / same
Inventory	Select or I	Select or P
Character (spend attribute points)	Select + X, or G (also the red cross at the bottom left of the inventory)	Select + X, or H
Skill tree (spend skill points)	Select + Y, or T	Select + Y, or U
Panels: inventory, skills, buttons, character, mercenary, quests	Select opens; Y goes to the next one	Select opens; Y goes to the next one
In the skill tree: learn / put on a button	A / X opens "Put on:" (the d-pad chooses the button, A assigns, B cancels)	Same
Buttons page: change what a button does	The d-pad chooses the button, A shows what it can have, A assigns it	Same
Talk to an NPC	A next to them, if no monster is right next to you (B closes)	Same
Open the waypoints (walking past a new one activates it)	A next to one, if no monster is right next to you (B closes)	Same
Use stairs or a portal	A next to it (if no monster is right next to you)	A next to it
Inventory: pick up / drop / use	A / X or A / X	A / X or A / X
Inventory: drop what you hold / put it away / sort	Y / B / LB	Y / B / LB
Socket a gem, rune or jewel	Pick it up with A and drop it with A on the item	Same
Horadric Cube: open / move items / transmute / close	X on the cube / X / A or X on Transmute / B	Same
Mercenary: give an item from the backpack / take it off	A (and A in the list) / X	A (and A in the list) / X
Shop: tabs / buy / sell (Sell tab or Select, then A on your item)	LB and RB (or the d-pad past the edge) / A / Select and A	Same
Character: add a point to the selected attribute	A	A
Pause (resume, volume, always run, controls, cube guide, save and exit)	Start or Esc	Start
See the controls (gamepad and keyboard)	CONTROLS in the main menu or the pause menu; left / right (or LB / RB) switch the tab, B goes back	Same
Cube guide: category / recipe / back	Left and right (or LB and RB) / up and down / B	Same
In the pause menu: change the volume or "Always run"	Left / right	Left / right
Quit the game	Select + Start

With a single player, any controller moves the character. The first gamepad used is player 1's and the second one is player 2's (the order in which they were connected does not matter).

Gamepads that misbehave (common on handheld consoles):

• A button or direction that is already pressed when the gamepad connects does not count until it is released.
• The left stick counts once it has stayed still for a moment, and that spot becomes its center: sticks that do not rest exactly at the center (like the analog sticks of the Anbernic RG35XX / RG40XX family) no longer walk or scroll menus by themselves, and a stick that is not there (an input that reads random values) is ignored.
• The same controller seen twice (two identical gamepads doing exactly the same thing) counts once: the copy does not take player 2.

---

Credits and legal notice

• License: the port's code and documentation are free software under the MIT license.
• Diablo, Diablo II and Diablo II: Resurrected are trademarks of Blizzard Entertainment. This project is not affiliated with Blizzard. The port does not include any game file: the importer copies them from your own installation, for your personal use. Do not share them. The screenshots in docs/screenshots show that art (© Blizzard Entertainment) only to illustrate the project; they are not covered by the MIT license.
• D2MOO, the reconstruction of the original game's code, used to keep the logic faithful (MIT; some tables come from it, see THIRD-PARTY-NOTICES.md).
• CascLib, to read Resurrected's files (MIT; linked into the importer).
• SDL2, for the window, sound and gamepads (zlib license).
