Fix graph tooltip stacking, source the SnowObs token from AFP, move the CSV captcha to Turnstile, spin the CSV download - #1227
Merged
Conversation
ECharts hard-codes z-index:9999999 on its tooltip div, so a tooltip on the station graphs painted over the site header, the nav dropdowns and any open dialog. extraCssText is applied after that default, so it wins. Co-Authored-By: Claude Opus 5 (1M context) <noreply@anthropic.com>
The token was an env var duplicating what the center's AFP config already publishes at widget_config.stations.token — the same public token the legacy nwac.us widgets read. Fetch it from there instead, so there is one source and nothing to set per environment. SNOWOBS_TOKEN is gone; a center without a token in its config now fails loudly. Co-Authored-By: Claude Opus 5 (1M context) <noreply@anthropic.com>
Same shape as the reCAPTCHA it replaces: explicit render (api.js only auto-scans on its first execution, which client-side navigation breaks), the solved token rides the GET form as cf-turnstile-response, and verification only enforces once both keys are set. Turnstile also reports errors, not just expiry, so the submit button re-locks on either. Deploys need NEXT_PUBLIC_TURNSTILE_SITE_KEY and TURNSTILE_SECRET_KEY; the RECAPTCHA pair can be dropped. Co-Authored-By: Claude Opus 5 (1M context) <noreply@anthropic.com>
Contributor
|
Preview deployment: https://fixxweather-snowobs-zindex.preview.avy-fx.org |
Contributor
|

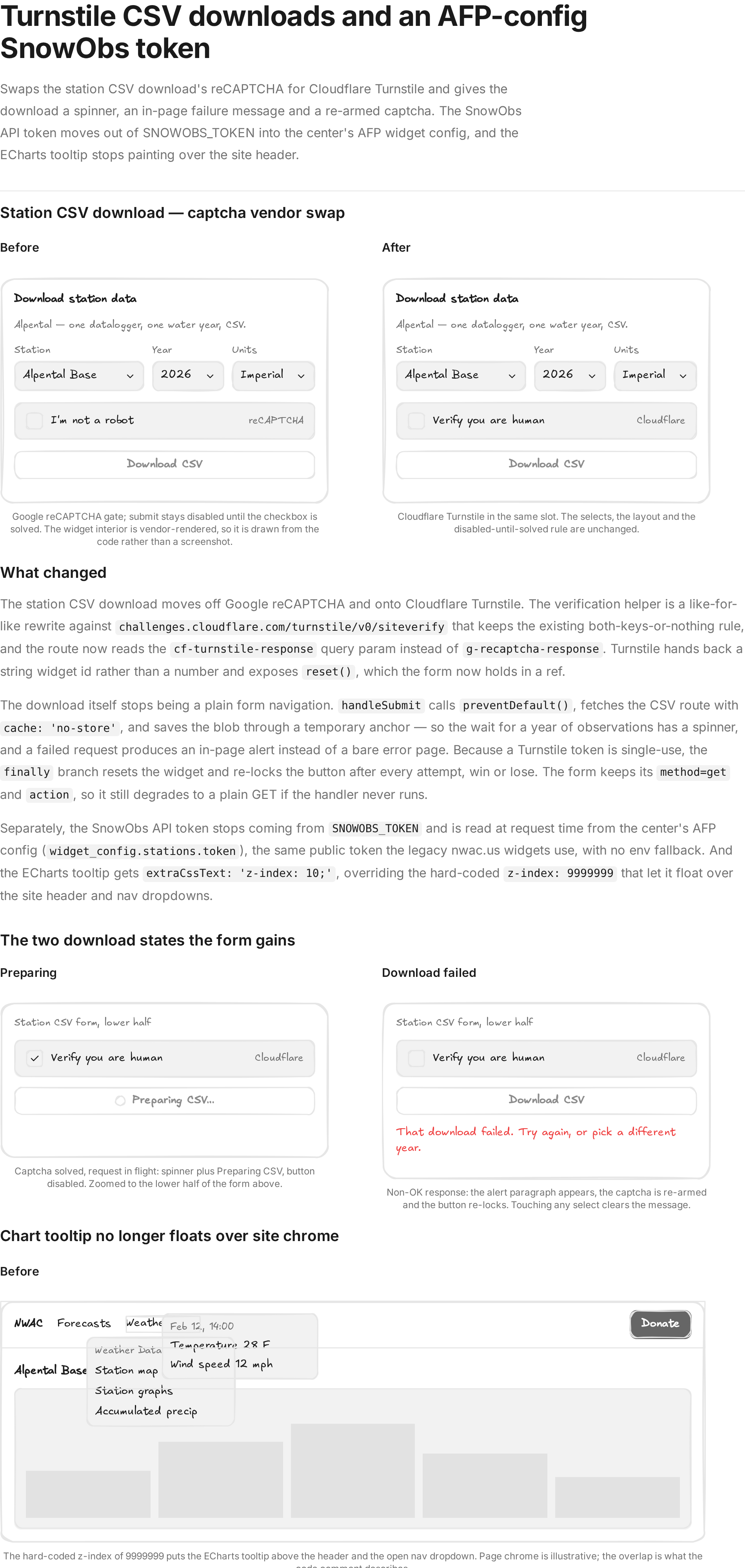

Here's a visual recap of what changed: Open the full interactive recap |
A year of observations takes a few seconds upstream and the form submit showed nothing while it worked. Fetch the CSV and save the blob instead, so the button can spin and lock, and a failure says so in place rather than replacing the page with plain text. Co-Authored-By: Claude Opus 5 (1M context) <noreply@anthropic.com>
rchlfryn
changed the title
- Re-arm the captcha after every download attempt. A Turnstile token is single-use, and since the page no longer navigates, the spent token was being resubmitted — every download after the first would have 403'd once the keys go live, with no way back but a reload. - Keep the download anchor in the document while it is clicked and defer the revoke. Firefox ignores a click on a detached anchor, so the save was a silent no-op there. - Fetch the CSV with cache: 'no-store'. The URL repeats exactly and the route sets no Cache-Control, so a re-download could be served a stale body. - Clear a stale failure notice when a selection changes. - Cover the captcha path in the client test, which the deleted env var had been hiding, and drop the type assertion CLAUDE.md forbids from the SnowObs test. - One 'nwac' literal in the SnowObs service instead of two, and say what force-dynamic actually rests on now that the token no longer comes from env. Co-Authored-By: Claude Opus 5 (1M context) <noreply@anthropic.com>
Collaborator
Author
|
🚀 This is included in version v1.16.0 |
This file contains hidden or bidirectional Unicode text that may be interpreted or compiled differently than what appears below. To review, open the file in an editor that reveals hidden Unicode characters.
Learn more about bidirectional Unicode characters
Sign up for free
to join this conversation on GitHub.
Already have an account?
Sign in to comment
1 participant
Add this suggestion to a batch that can be applied as a single commit.This suggestion is invalid because no changes were made to the code.Suggestions cannot be applied while the pull request is closed.Suggestions cannot be applied while viewing a subset of changes.Only one suggestion per line can be applied in a batch.Add this suggestion to a batch that can be applied as a single commit.Applying suggestions on deleted lines is not supported.You must change the existing code in this line in order to create a valid suggestion.Outdated suggestions cannot be applied.This suggestion has been applied or marked resolved.Suggestions cannot be applied from pending reviews.Suggestions cannot be applied on multi-line comments.Suggestions cannot be applied while the pull request is queued to merge.Suggestion cannot be applied right now. Please check back later.
Description
Four fixes on the weather station pages, one commit each.
Related Issues
None filed — these came out of hands-on use of the station pages.
Key Changes
Chart tooltips stop covering the header (
902f0e85)ECharts hard-codes
z-index:9999999on its tooltip div, so a tooltip on the graphs painted over the site header, the nav dropdowns and any open dialog.tooltip.extraCssTextis applied after that default, soz-index: 10there wins while keeping the tooltip above the chart itself.SnowObs token comes from the center's AFP config (
d9849b4a)SNOWOBS_TOKENduplicated what the center's AFP config already publishes atwidget_config.stations.token— the same public token the legacy nwac.us widgets read.fetchStationTimeseriesnow reads it fromgetAvalancheCenterMetadata(), so there is one source and nothing to set per environment.SNOWOBS_TOKENis gone (.env.example, Vercel envs); a center whose config carries no token now fails loudly with aSnowObsError. The zod schema already modelled the field, so no schema change was needed.CSV download captcha is Cloudflare Turnstile (
068905e7)Same shape as the reCAPTCHA it replaces: explicit render (api.js only auto-scans on its first execution, which client-side navigation breaks), the solved token rides the GET form as
cf-turnstile-response, and verification only enforces once both keys are set. Turnstile also reports errors rather than only expiry, so the submit button re-locks on either.The CSV download shows a spinner (
f4e8af75)A year of observations takes a few seconds upstream, and the plain form submit showed nothing while it worked. The form now fetches the CSV and saves the blob, so the button spins and locks while it runs, and a failure says so in place instead of replacing the page with a plain-text error.
How to test
/weather/stations/alpental, hover a chart, and scroll so the tooltip meets the sticky header: it now passes under the header and under an open nav dropdown instead of over them.SNOWOBS_TOKENset anywhere.1x00000000000000000000AA, secret1x0000000000000000000000000000000AA), open the Download tab, and confirm the widget renders, the submit button unlocks on solve, and the CSV downloads. With either key unset the captcha stays disabled and downloads work as before.Full suite green:
pnpm tsc,pnpm lint,pnpm test(640),pnpm fallow:check,pnpm drift:check.Screenshots / Demo video
None — the tooltip fix is a stacking change best seen live, and the rest have little visual surface.
Migration Explanation
No migrations.
Future enhancements / Questions
NEXT_PUBLIC_TURNSTILE_SITE_KEYandTURNSTILE_SECRET_KEYbefore the captcha is live;NEXT_PUBLIC_RECAPTCHA_SITE_KEY,RECAPTCHA_SECRET_KEYandSNOWOBS_TOKENcan all be deleted. This supersedes the outstanding "get real reCAPTCHA v2 prod keys" item.api.avalanche.orgfor the token at each cache miss (24h revalidate) with no local escape hatch. Deliberate — one source of truth was the goal.nwacslug, which today doubles as the SnowObs source name. Make weather station data pages center-dynamic #1169 splits those when a second center gets these pages.
