Perdanga VSP

Perdanga VSP - a native C++ media player built with libmpv and D3D11 hardware rendering.

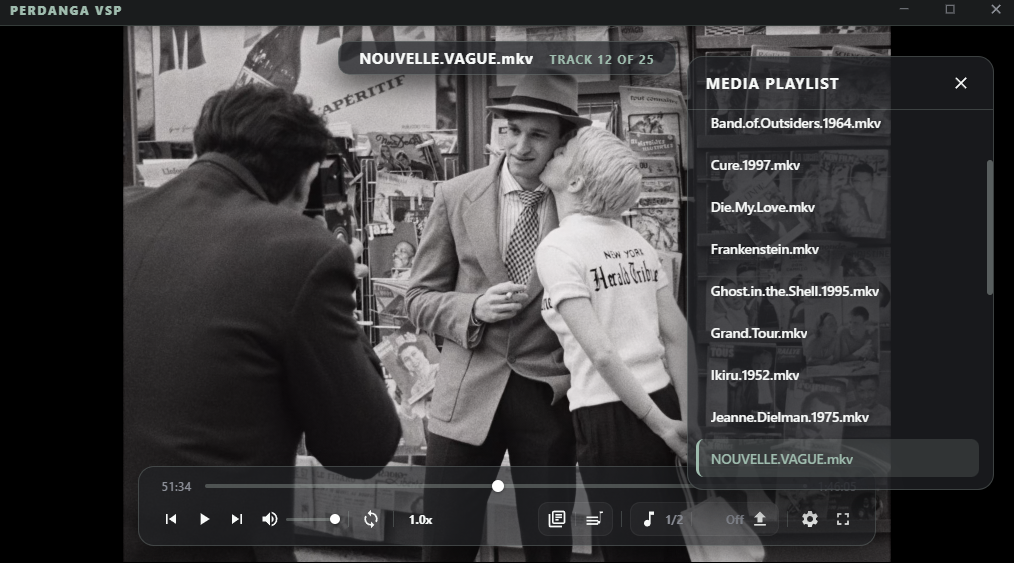

Media Playlist & Timeline Preview

Video Frame Preview	Audio & Subtitles

---

Features

• Direct3D 11 Native Output: Video rendered directly into the native Win32 window via libmpv with hardware VSync synchronization (d3d11-sync-interval=1) and video-sync=display-resample.
• Transparent Glass UI: Built with HTML5/CSS3 and hardware-accelerated WebView2, featuring blur effects, custom accent colors, and seamless custom window frames.
• Timeline Frame Scrubbing: Hovering over the timeline provides millisecond-precise timestamps, frame numbers, chapter tags, and real-time video thumbnails.
• Single-Instance Win32 Architecture: Opening files from File Explorer immediately routes them into the active running instance with no duplicate processes.
• Full Subtitle & Audio Engine: Switch embedded audio and subtitle tracks on the fly, adjust delay (-0.1s / +0.1s), customize vertical positioning, and load external .srt/.vtt/.ass files.

---

Supported Formats

• Video Containers: MP4, MKV, WebM, AVI, MOV, TS, M2TS, FLV, WMV, VOB, and more.
• Video Codecs: AV1, HEVC/H.265, H.264/AVC, VP9, VP8, MPEG-2, VC-1, ProRes, etc.
• Audio Formats: MP3, FLAC, WAV, AAC, OGG, Opus, M4A, AC3, E-AC3, DTS, ALAC.
• Subtitles: ASS/SSA, SRT, WebVTT, PGS, VobSub.

---

⌨️ Hotkeys & Controls

Shortcut	Action
Space	Play / Pause
Double Click	Toggle Fullscreen
< / > (,, .)	Adjust Playback Speed (-/+ 0.05x)
Left / Right	Smooth Seek -/+ 5 Seconds (Accelerates on hold)
Shift + Left / Right	Skip to Previous / Next Chapter
PgUp / PgDn	Previous / Next File in Playlist
L	Toggle Playlist Menu
C	Toggle Chapters Menu
S	Take Instant Screenshot (Saved to Pictures/Perdanga VSP)
Ctrl + + / -	Subtitle Size Scaling
Shift + + / -	Subtitle Vertical Position
G / H	Subtitle Sync Timing (-/+ 0.1s)
Mouse Wheel (over icons)	Adjust Volume, Playback Speed, or Cycle Tracks
Right Click	Quick Track & Subtitle Selection Menu
Escape	Exit Fullscreen or Close Active Modal / Panel

---

Technology Stack

• Core Backend: C++20 (MSVC), Windows API (Win32), OLE / Shell APIs, DWM.
• Playback & Demuxing: libmpv (C API, Direct3D 11, FFmpeg-based decoders).
• UI Runtime: Microsoft Edge WebView2 (Evergreen Runtime, transparent composition).
• Frontend: Vanilla JavaScript (ES6+), CSS3 Glassmorphism, Semantic HTML5.
• Build System: CMake 3.20+ with NMake Makefiles.
• Packaging: Inno Setup 6 (Solid LZMA2 compression).

---

📂 Project Structure

Perdanga VSP/
├── CMakeLists.txt          # Root CMake build configuration
├── build.bat               # Fast compilation script
├── make_installer.bat      # 1-click build & Inno Setup packager
├── installer.iss           # Inno Setup installation script & registry associations
│
├── src/                    # C++ Native Core
│   ├── main.cpp            # Win32 host window, WebView2 glue, OLE drag-and-drop
│   ├── mpv_player.h        # libmpv thread-safe wrapper interface
│   ├── mpv_player.cpp      # libmpv engine setup, D3D11 options, IPC event pump
│   └── utils.h             # Unicode converters, path resolution, playlist parser
│
├── ui/                     # Web Frontend
│   ├── index.html          # Application layout and modals
│   ├── styles.css          # Glassmorphism styling and animation
│   ├── renderer.js         # UI logic, timeline controller, and state management
│   ├── bridge.js           # Bidirectional IPC bridge (WebView2 <-> C++)
│   ├── hotkeys.js          # Global keyboard shortcut listeners
│   └── ico/                # Application & media icons
│
└── libmpv/                 # libmpv SDK
    ├── include/mpv/        # C header files (client.h, etc.)
    ├── lib/                # Import library (mpv.lib)
    └── libmpv-2.dll        # Dynamic runtime library

---

Prerequisites

1. Windows 10 / 11 (64-bit)
2. Visual Studio 2022 / 2026 (or Build Tools) with the "Desktop development with C++" workload.
3. CMake 3.20 or newer (usually included with Visual Studio).
4. Inno Setup 6 (Required only for building the installer: winget install JR.InnoSetup).

---

Step-by-Step Build Guide

1. Obtain libmpv Development Files

Make sure the libmpv folder in the root directory contains the necessary headers and libraries:

libmpv/
├── include/
│   └── mpv/
│       └── client.h
├── lib/
│   └── mpv.lib (or libmpv.lib)
└── libmpv-2.dll

2. Compile the Application

1. Open x64 Native Tools Command Prompt for VS.
2. Navigate to the project root directory:

   cd "C:\Path\To\Perdanga VSP"

3. Run the automated build script:

   build.bat

The compiled native executable will be located at build\PerdangaVSP.exe.

---

📦 Creating the Installer

To compile the application and package it into a self-contained setup wizard:

make_installer.bat

---

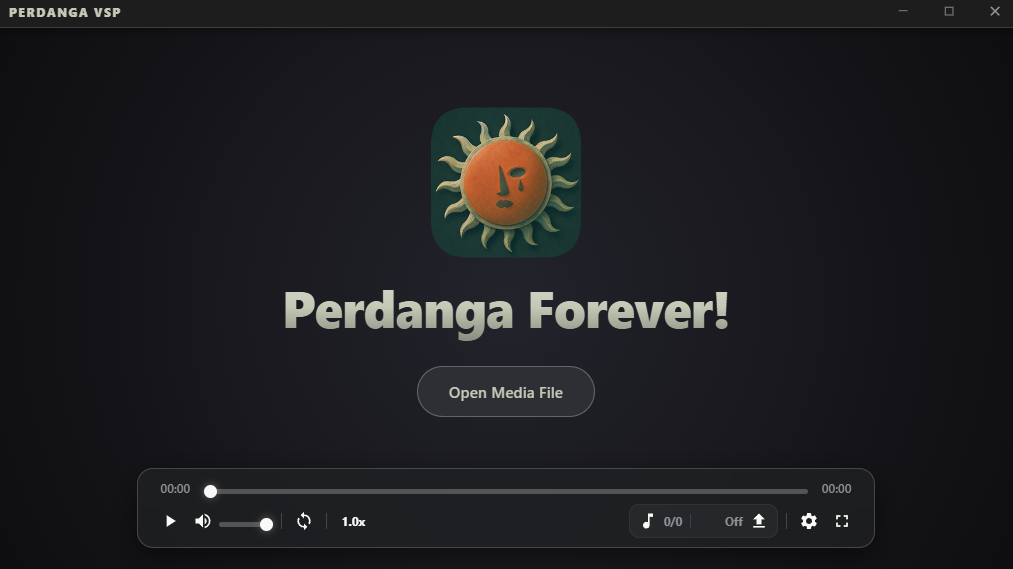

Perdanga Forever!
