feat(agent): manage Copilot CLI and VS Code Copilot Chat by LutzLange · Pull Request #135 · agentdesktop-dev/agentdesktop

LutzLange · 2026-09-30T16:59:26Z

Part of #86 (series overview: #86 overview). Stacked on #134; review the last three commits (the second fixes a providers.json edge case and makes the README more precise; the third addresses the review below).

Why

The clients still have to be pointed at the proxy by hand, on each machine, with the pairing value.

Change

Two managed programs, user mode only.

programs.copilot writes the Copilot CLI's bring-your-own-key provider file (~/.copilot/providers.json). It adds two providers on /copilot-cli and keeps the user's own.
programs.vscode, copilotChat: ownModels (default), writes chatLanguageModels.json for Copilot Chat's Custom Endpoint provider on /vscode-copilot.
copilotChat: githubModels keeps GitHub's models and the user's Copilot seat:
- It sets github.copilot.advanced.debug.overrideCapiUrl (the Copilot API base URL) in the user settings.json to /vscode-copilot-capi/<pairing>. The pairing value is in the path, because VS Code cannot add a header.
- The proxy moves the client's Copilot token to x-llm-token, puts the gateway identity in Authorization, and forwards to llmGateway.proxyUrl.
- It tunnels the Responses WebSocket (agent mode).
- It keeps the override out of Settings Sync.
settings.json is edited in place (JSONC): only the managed keys change. Removal restores the file byte for byte.
File handling. Each managed file is written 0600 with a small sidecar file next to it that records what the daemon added, so removal takes out exactly that. A file the daemon cannot parse is left alone and reported as a conflict; a sidecar it cannot read fails the apply, so the user's earlier value is never dropped.

Risk and compatibility

overrideCapiUrl is an undocumented Copilot Chat setting.
On GitHub's models, VS Code sends its Copilot token and the pairing value to the loopback port. If the proxy is down, another local user could bind that port, so use this mode on single-user devices.
Inline completions still go to GitHub directly.
New program keys: upgrade the controller first.
macOS and Windows paths are covered by unit tests only.

How to review

provider/copilot/reconcile.rs and provider/vscode/{reconcile,settings}.rs hold the three writers.
The llm_proxy.rs additions hold the Copilot API route and the tunnel.
json_merge.rs adds root-array support.
About two-thirds of the added lines are tests and fixtures.

Review fixes

The last commit (6bcbcb6) addresses the Copilot review:

An unreadable .settings.json.agentdesktop now fails the apply, as the providers.json and chatLanguageModels.json sidecars already do. Before, it was ignored and the user's own overrideCapiUrl was lost on removal. The error names the path and, for a syntax error, the line and column, never a value.
An identical settings sidecar looser than 0600 is written again at 0600.
9 new unit tests; lab-checked on the Linux VM (corrupt sidecar: program failed, both files unchanged, the user's value back after removal).

Tests

CI green, including Docker lifecycle tests for all three writers and the WebSocket tunnel. Lab-tested on a Linux VM with VS Code 1.139, Copilot CLI 1.0.88 and a Copilot Business seat; the steps are in the guide in #138. After the rebase onto the review fixes in #134, the WebSocket tunnel takes its deadline from the shared credential fetch; that change is covered by unit tests only, not re-tested on the live Copilot path. The tunnel closes when that credential expires (4 to 5 minutes with the default gatewayJwt.lifetime), also mid-turn; whether VS Code then reconnects without the user noticing has not been verified.

Follow-ups

No --dry-run preview for the Copilot programs: No --dry-run preview for the Copilot programs LutzLange/agentdesktop#25.

Screenshot

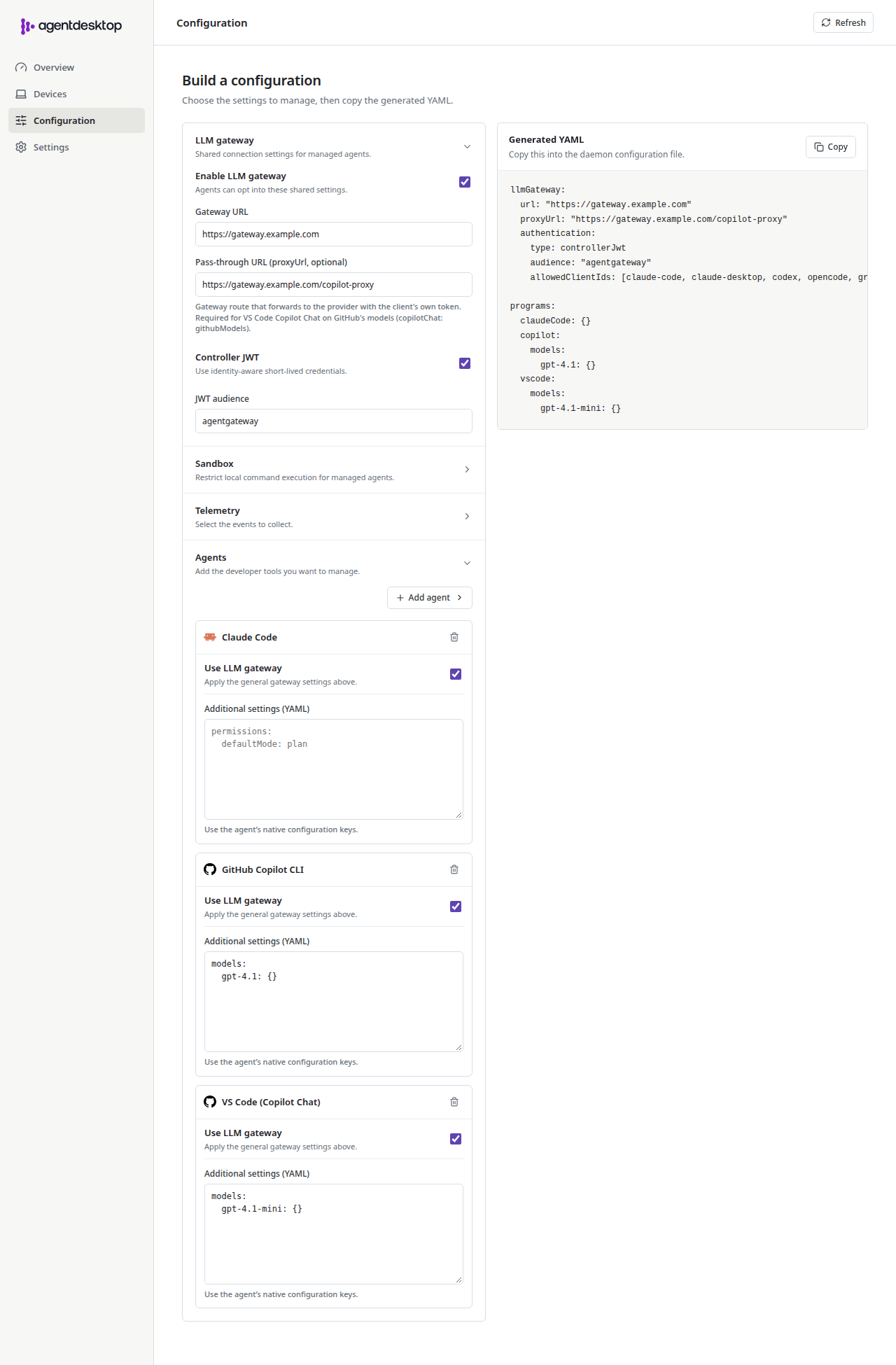

Controller configuration view with the two Copilot programs and the pass-through URL.

🤖 Generated with Claude Code

peterj · 2026-10-06T17:20:42Z

@copilot resolve the merge conflicts in this pull request

Copilot

Copilot review overview

🟡 Changes recommended

Permission drift can expose pairing values, and an invalid VS Code sidecar can prevent restoration of user settings.

Review effort: Balanced
Findings: 2

Open (2)

Unchanged managed files do not repair permission drift · New
Unreadable sidecars can overwrite and lose user settings · New

What changed in this PR

Adds managed GitHub Copilot CLI and VS Code Copilot Chat routing through the local LLM proxy.

Changes:

Adds Copilot/VS Code configuration reconcilers, discovery, schemas, and controller UI.
Adds proxy authentication, GitHub OAuth, pass-through, and WebSocket support.
Expands lifecycle tests, fixtures, and documentation.

File	Description
`schema/daemon-config.md`	Documents new configuration keys.
`schema/daemon-config.json`	Adds generated schemas for proxy and Copilot programs.
`README.md`	Documents proxy setup, routes, security, and managed programs.
`frontend/ui/src/tools.tsx`	Adds Copilot CLI display metadata.
`frontend/desktop/src/views/StatusView.stories.tsx`	Covers bound and failed proxy states.
`frontend/desktop/src/types.ts`	Types proxy status information.
`frontend/desktop/src/stories/fixtures.ts`	Adds proxy status fixtures.
`frontend/desktop/src/components/DaemonInformation.tsx`	Displays local proxy status.
`frontend/controller/src/views/ConfigurationView.tsx`	Adds proxy URL and Copilot program controls.
`frontend/controller/src/types.ts`	Extends controller configuration types.
`crates/core/src/model.rs`	Adds proxy status models.
`crates/core/src/config.rs`	Adds and validates proxy and Copilot configuration.
`crates/agent/tests/integration.rs`	Registers Copilot integration tests.
`crates/agent/tests/common/gateway.rs`	Captures forwarded LLM tokens.
`crates/agent/tests/common/container.rs`	Improves container file and process handling.
`crates/agent/src/remote.rs`	Bounds controller credential requests.
`crates/agent/src/reconcile/plan.rs`	Adds private-directory planning.
`crates/agent/src/reconcile/mod.rs`	Registers new reconcilers and proxy context.
`crates/agent/src/provider/vscode/testdata/Dockerfile`	Prepares VS Code test runtime state.
`crates/agent/src/provider/vscode/testdata/chatLanguageModels.lab.json`	Adds a managed-model fixture.
`crates/agent/src/provider/vscode/settings.rs`	Manages Copilot CAPI settings in JSONC.
`crates/agent/src/provider/vscode/reconcile.rs`	Manages custom endpoint models.
`crates/agent/src/provider/vscode/mod.rs`	Integrates VS Code reconciliation.
`crates/agent/src/provider/vscode/integration_tests.rs`	Tests both VS Code modes and tunneling.
`crates/agent/src/provider/vscode/discovery.rs`	Exposes the shared VS Code profile path.
`crates/agent/src/provider/README.md`	Updates the provider feature matrix.
`crates/agent/src/provider/mod.rs`	Registers Copilot and proxy context.
`crates/agent/src/provider/json_merge.rs`	Adds root-array and keyed-array merging.
`crates/agent/src/provider/copilot/testdata/providers.lab.json`	Adds a Copilot provider fixture.
`crates/agent/src/provider/copilot/testdata/Dockerfile`	Adds a Copilot CLI test image.
`crates/agent/src/provider/copilot/reconcile.rs`	Reconciles Copilot CLI providers and models.
`crates/agent/src/provider/copilot/mod.rs`	Integrates the Copilot provider.
`crates/agent/src/provider/copilot/integration_tests.rs`	Tests Copilot lifecycle and proxy routing.
`crates/agent/src/provider/copilot/discovery.rs`	Discovers Copilot CLI installations.
`crates/agent/src/provider/claude_code/mod.rs`	Updates reconcile test context.
`crates/agent/src/oidc.rs`	Extends authorization pages for GitHub.
`crates/agent/src/lib.rs`	Registers proxy and GitHub OAuth modules.
`crates/agent/src/identity.rs`	Adds device-ID-only loading.
`crates/agent/src/github_oauth.rs`	Implements GitHub device authorization and refresh.
`crates/agent/src/github_oauth.html`	Adds the GitHub authorization page.
`crates/agent/src/gateway_oidc.rs`	Chains GitHub authorization after OIDC.
`crates/agent/src/api.rs`	Exposes shared gateway credential acquisition.
`crates/agent/Cargo.toml`	Adds agent proxy and JSONC dependencies.
`Cargo.toml`	Adds workspace networking and JSONC dependencies.
`Cargo.lock`	Locks the new dependencies.

💡 Add a code-review agent skill or configure MCP servers for context-aware, tailored reviews. Learn more in the docs.

LutzLange · 2026-10-07T01:19:26Z

    let action = match existing.as_deref() {
        Some(existing) if existing == contents => "unchanged",
        Some(_) => "update",
        None => "create",
    };
-    plan.record_diff(
+    record(
+        plan,
        display_name,
        description,
        action,
        path,
        existing.as_deref(),
        Some(&contents),
+        options.redact_diff,
    );

    if action != "unchanged" {
-        plan.write_file(path, &contents, 0o644)?;
+        plan.write_file(path, &contents, options.mode)?;


Fixed in #137: plan_merge_with treats an identical file whose mode is looser than planned as an update and rewrites it at the planned mode; #137 extends that to every program that writes a managed file.

LutzLange · 2026-10-07T01:19:27Z

+    let state = bytes.as_deref().and_then(|bytes| {
+        let state = read_state(bytes);
+        if state.is_none() {
+            warn!(path = %state_path.display(), "ignoring a VS Code settings sidecar that cannot be parsed");
+        }
+        state


Fixed in 6bcbcb6: an unreadable .settings.json.agentdesktop now fails the apply, as the providers.json and chatLanguageModels.json sidecars already do, so the user's earlier overrideCapiUrl is never dropped. The error names the path (and the line and column for a syntax error), never a value from the file; the README says to fix or delete it. Test: corrupt_sidecar_does_not_lose_the_users_override.

Part of agentdesktop-dev#86. Two programs that point Copilot at the local LLM proxy, user mode only: - `programs.copilot` writes the Copilot CLI's BYOK provider registry (`~/.copilot/providers.json`, or `$COPILOT_HOME` / `COPILOT_PROVIDERS_CONFIG`): providers `agentdesktop` (OpenAI-shaped) and `agentdesktop-anthropic` on the proxy's `/copilot-cli` route, with the pairing header; the user's own providers are kept. Discovery reports the CLI and its version from the npm manifest. - `programs.vscode` with `copilotChat: ownModels` (default) writes `chatLanguageModels.json` for Copilot Chat's built-in Custom Endpoint provider on `/vscode-copilot`; the user's entries are kept. - `copilotChat: githubModels` keeps GitHub's own models and the user's Copilot seat: the daemon sets `github.copilot.advanced.debug.overrideCapiUrl` in the user `settings.json` to the proxy's `/vscode-copilot-capi/<pairing>` route (pairing in the path, since VS Code cannot add a header), forwards to `llmGateway.proxyUrl` with the client's Copilot token moved aside, tunnels the Responses WebSocket for agent mode, forwards `_ping` without a credential, and keeps the override out of Settings Sync. `settings.json` is edited in place (JSONC): only the managed keys change, comments, key order and formatting stay, and removal restores the file byte for byte. Managed files are written 0600 and carry a sidecar that records what the daemon added, so removal takes out exactly that. A file the daemon cannot parse is a conflict and left alone. Co-Authored-By: Claude Opus 5.5 <noreply@anthropic.com>

…recision - Copilot CLI: removing our providers by their pairing header (no sidecar) no longer adds "models": null to a providers.json that has no models key. - README: the CAPI WebSocket tunnel closes after 4 to 5 minutes with the controller's default gatewayJwt.lifetime, also mid-turn; VS Code's reconnect behaviour is not verified. - README: the settings.json removal exceptions are listed in full (multi-line empty object, comment-only file). - README: the providers.json sidecar holds the user's own apiKey values. Co-Authored-By: Claude Opus 5.5 <noreply@anthropic.com>

…idecar mode repaired Review on agentdesktop-dev#135. - `.settings.json.agentdesktop` that is not JSON or not a known settings state now fails the apply, as the providers.json and chatLanguageModels.json sidecars already do: like a conflict, every managed file on the device stays untouched, also while `programs.vscode` is not configured (removal reads the sidecar too), and the daemon does not start. Before, the sidecar was ignored and rebuilt from the sidecar-less rules, so a user's own `overrideCapiUrl` was lost on removal. The error names the sidecar path and, for a syntax error, the line and column only, never a value. A sidecar without `version` (the earlier whole-document form) is still upgraded; a leading byte-order mark is accepted. - An identical sidecar whose mode is looser than 0600 is written again at 0600, as settings.json is; settings.json and its sidecar use the same check (a 0700 settings.json is now also tightened). The rewrite of the sidecar alone is not shown in the plan summary, since settings.json is unchanged. - README: the unreadable-sidecar behaviour and the sidecar's mode. Behaviour change: the test `an_unreadable_sidecar_warns_and_apply_proceeds` is replaced. Tests: 9 new, 2 of them unix-only. The file-mode tests in this module (old and new) assume umask 022. Co-Authored-By: Claude Opus 5.5 <noreply@anthropic.com>

LutzLange force-pushed the upstream/s3-copilot-programs branch from 16214d3 to a0f8d73 Compare October 2, 2026 23:07

LutzLange closed this Oct 2, 2026

LutzLange reopened this Oct 2, 2026

LutzLange force-pushed the upstream/s3-copilot-programs branch from 23360c9 to 4318c32 Compare October 6, 2026 07:10

peterj requested a balanced review from Copilot October 6, 2026 18:20

Copilot started reviewing on behalf of peterj October 6, 2026 18:20 View session

Copilot AI reviewed Oct 6, 2026

View reviewed changes

LutzLange and others added 2 commits October 7, 2026 01:12

LutzLange force-pushed the upstream/s3-copilot-programs branch from 4318c32 to 588c8a8 Compare October 6, 2026 23:19

peterj approved these changes Oct 7, 2026

View reviewed changes

peterj merged commit bc14ee3 into agentdesktop-dev:main Oct 7, 2026
3 checks passed
