[rubyycheung]

User impact

TreeList hierarchy guides align to the center of each expand/collapse chevron without shifting the interactive control. Labels remain in their existing position, and showing or hiding guides does not move the chevron.

Visual authority

• Durable component-local intent added to the optional Design decisions table by a team design owner: component:TreeList DD4.

Before and after

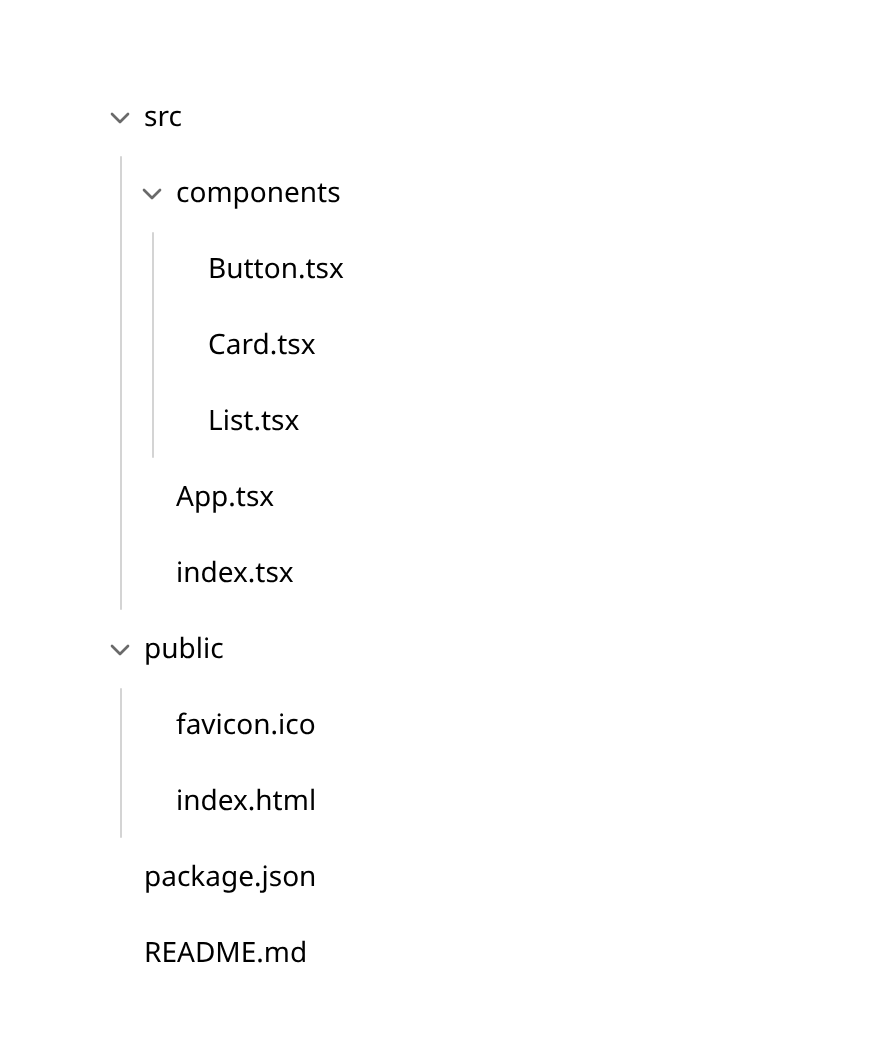

Matched Chromium capture of Core/TreeList/Fully Expanded, lineGuides, light mode, 480 × 520 CSS px at 2× device scale.

Before	After

The label column is unchanged. The visible four-pixel movement is the chevron and its aligned guide moving to the chevron's natural column.

State matrix

• lineGuides: guide centers equal chevron centers at every visible depth.
• noGuides: chevron centers are identical to lineGuides.
• LTR and RTL: chevrons have zero logical-start compensation and guides remain centered.
• Existing hover, selection, focus, label spacing, and row geometry remain unchanged.

Scope

• Appearance is the primary intent.
• Behavior, API, interaction model, and unrelated layout changes were removed or split.
• The evidence shows the changed pixels actively running, not only source or computed styles.
• Public text and artifacts contain no internal Meta context.

Writing rubric results

R1 narration: none; DD4 states the component's present-tense visual contract.
R2 research: none in the record; browser measurements remain test and pull-request evidence.
R3 evidence: the verification row names the real-browser test and measured contract, not a change reference.
R4 rejected alternatives: none.
R5 change references: none.
R6 open questions: none.

Testing

• TreeListGuideAlignment.interaction.browser.spec.ts in real Chromium: 3/3 passed for LTR, RTL, and guide visibility. The two natural-column cases fail against main with the existing 4 px chevron compensation.
• pnpm exec vitest run packages/core/src/TreeList/TreeList.test.tsx --project ui: 105/105 passed.
• pnpm -F @astryxdesign/core typecheck: passed.
• pnpm -F @astryxdesign/core build: passed.
• pnpm storybook:build: passed.
• pnpm check:knowledge, pnpm check:changesets, pnpm check:sync, ESLint, Prettier, and git diff --check: passed.
• Component size, gzip base → head:
  • TreeList: JS 39,599 → 39,605 B (+6 B); CSS 4,781 → 4,754 B (-27 B).
  • PowerSearch reverse dependent: JS 168,690 → 168,685 B (-5 B); CSS 20,361 → 20,332 B (-29 B).

[vercel]

The latest updates on your projects. Learn more about Vercel for GitHub.

Project	Deployment	Actions	Updated
astryx	Ready	Preview	Oct 30, 2026 5:09pm UTC

[astracat-bot]

AI review status for this pull request.

Review status	Updated
❓ Needs maintainer input (for maintainers only)	Oct 30, 2026, 6:20 PM UTC

[github-actions]

PR Analysis Report

📚 Storybook Preview

View Storybook for this PR

🧪 Sandbox Preview

View Sandbox for this PR

Modified Components

TreeList _{(@astryxdesign/core)} · View in Storybook

Metric	Before	After	Delta
Entry File (ESM)	648B	648B	0B
Lines of Code	1068	1065	-
Complexity	Very High	Very High (137)	-

Component Size

Component	Import before	Import after	Delta	CSS before	CSS after	Delta
core/PowerSearch	168.0KB	168.0KB	+5B	20.1KB	20.0KB	-29B
core/TreeList	41.2KB	41.2KB	+3B	4.8KB	4.8KB	-31B

Sizes are gzip. Import counts the JavaScript the import loads eagerly; CSS counts the package stylesheet rules referenced by the modules it can load from its own package, lazily loaded ones included.

Bundle Size Summary

Gzip figures measure each package's entry file, not the code an import pulls in.

Package	Entry (ESM)	Entry gzip before	Entry gzip after	Delta
@astryxdesign/core	4.9KB	1.2KB	1.2KB	0B

Package stylesheet	Gzip before	Gzip after	Delta
@astryxdesign/core	35.4KB	35.4KB	0B

Accessibility Audit

Status: The accessibility audit did not run on this pull request. It runs after merges to main and before each release; pull requests that touch components run it with the ci:heavy-lanes label.

---

_{Generated by PR Enrichment workflow | Storybook | Sandbox | View full report}

[astracat-bot]

This pull request needs an owner decision before it can be approved. The new component:TreeList DD4 design decision and its verification row are what authorize moving every chevron and guide 4px toward the row's inline start, and neither is approved for this head yet. An engineering owner records that decision by commenting /approve-spec <full head SHA> on this pull request; the author may do so if they are an engineering owner. Separately, the changeset needs to follow spec:AST-017 FR3: use [feat] for this intentional visual change and state the old and new appearance (chevrons and guides 4px closer to the row's start, the chevron-to-label gap widening from 4px to 8px, labels unchanged).

[Automated review]

[astracat-bot]

This pull request needs an owner decision before it can be approved: the new component:TreeList DD4 design decision and its verification row are what authorize moving every chevron and guide 4px toward the row's inline start, and the engineering-owner approval they received applied to an earlier commit, so it does not cover the current head. An engineering owner records that decision again, or rejects it, by commenting /approve-spec <full head SHA> on this pull request; the author may do so if they are an engineering owner. Nothing else blocks: labels, row geometry, theme targets and RTL mirroring are unchanged, the new browser test passes, and the changeset follows the release rules for an intentional visual change.

[Automated review]

[astracat-bot]

This pull request needs an owner decision before it can be approved: the new component:TreeList DD4 design decision and its verification row are what authorize moving every chevron and guide 4px toward the row's inline start, and the engineering-owner approval they received applied to an earlier commit, so it does not cover the current head after the rebase. An engineering owner records that decision again, or rejects it, by commenting /approve-spec <full head SHA> on this pull request; the author may do so if they are an engineering owner. Nothing else blocks: labels, row geometry, theme targets and RTL mirroring are unchanged, the new browser test passes on this head and catches the old chevron margins, and the changeset follows the release rules for an intentional visual change.

[Automated review]

[rubyycheung]

/approve-spec 9173976

[astracat-bot]

This pull request needs an engineering owner's decision before it can be approved: the new component:TreeList DD4 design decision and its verification row are what authorize moving every chevron and guide 4px toward the row's inline start, and because the same edit changes both the Design decisions table and the Verification map, it needs exact-head approval from a design owner and from an engineering owner. The /approve-spec already posted for this head covers the design side; an engineering owner records the remaining decision, or rejects it, by commenting /approve-spec <full head SHA> on this pull request, and the author may do so if they are an engineering owner. Nothing else blocks: labels, row geometry, theme targets and RTL mirroring are unchanged, the new browser test passes on this head and catches the old chevron margins, and the changeset follows the release rules for an intentional visual change.

[Automated review]
