TaskNotes Gantt

A companion plugin for TaskNotes that adds an interactive Gantt timeline to Obsidian. Point it at your TaskNotes tasks and get a live schedule with dependency arrows, drag-to-reschedule, progress bars, inline editing, and parent/child roll-up — changes are written straight back to your task notes through TaskNotes.

Built on SVAR Svelte Gantt and registered as an Obsidian Bases view, so you drive it from a Base query and your existing note properties.

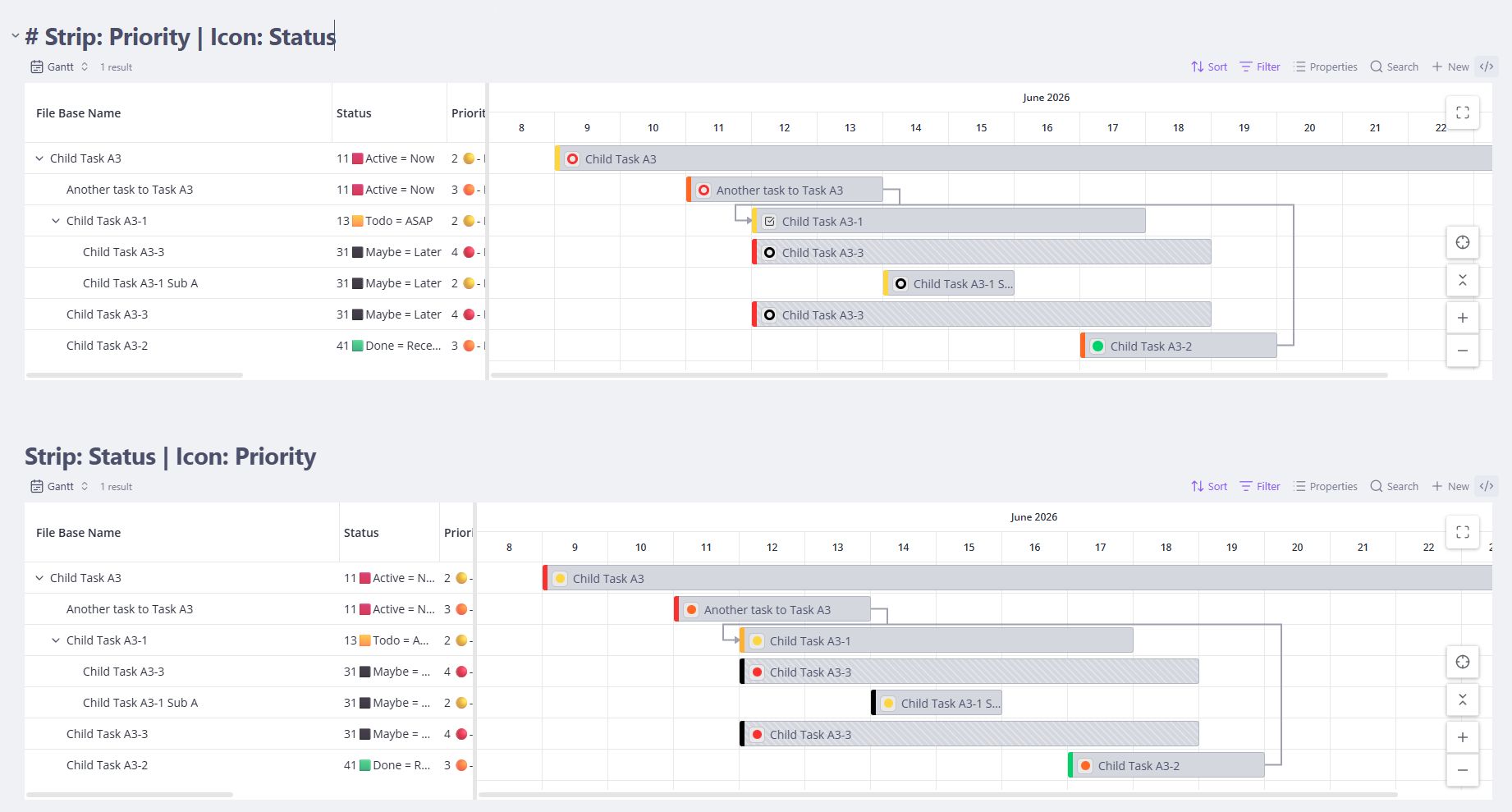

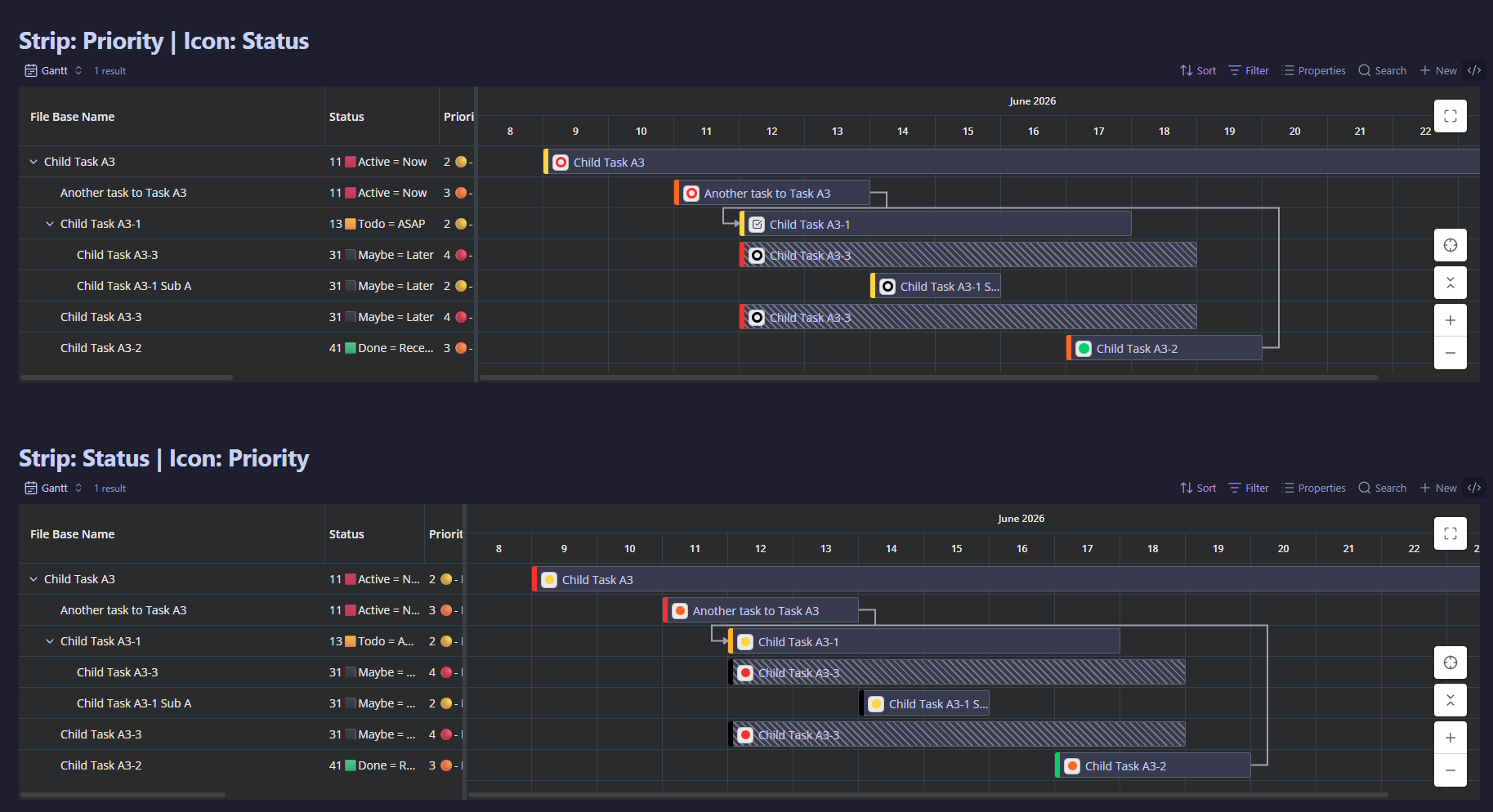

Light theme	Dark theme

💜 Status & pace — please read

Currently in the 0.1.0 beta series (install via BRAT). I built TaskNotes Gantt to scratch my own itch, and I'm glad to share it with anyone it helps — but I have very little time for it, and I won't let a joyful project turn into a burdensome one. I genuinely welcome feedback and requests; I just can't promise to answer quickly, so please keep that in mind before you rely on it. The plugin is solid (thoroughly unit- and integration-tested), and moving slowly is precisely how I keep it that way — that's the real reason for the Beta label. → The full note on development cadence » · Vision & philosophy »

With TaskNotes (the main use case)

When TaskNotes is installed, TaskNotes Gantt is a full read/write view of your tasks:

• Schedule — bars from each task's scheduled → due dates; drag to reschedule and resize to change duration, persisted back to the task note.
• Progress on the bars — per view, show completion from the checklist progress TaskNotes computes, or read a numeric property you map; in property mode you can drag the progress handle to write the value back.
• Inline editing in the grid — double-click a cell (or press F2) to edit a task's properties without leaving the timeline. Editors are type-aware — text, numbers, checkboxes, locale-aware dates (with a calendar dropdown), status, priority, and multi-value list fields — and every edit is written through TaskNotes. Property cells render as real Obsidian markdown, so wikilinks are clickable and tags show as pills.
• Dependencies — renders all four RFC 9253 relationship types (Finish-to-Start, Finish-to-Finish, Start-to-Start, Start-to-Finish) plus gap/lag, read from TaskNotes' blockedBy. Create and delete Finish-to-Start dependencies by dragging between bars. (Authoring the other three types and editing reltype/gap is in progress.)
• Parent / child roll-up — subtasks nest under their parent; drag a parent and its whole subtree moves with it.
• Bar colors & icons — per view, choose how bars are colored (a hierarchy default of green parents / blue children, By status, By priority, or adapting to your Obsidian theme) and whether the color is a full fill or a left-edge strip, with optional on-bar status/priority icon chips.
• Native task editing — bars behave like TaskNotes task cards. Click a bar to open the note or TaskNotes' edit modal (honoring your TaskNotes single-/double-click settings; ⌘/Ctrl-click opens the note in a new tab), and right-click for TaskNotes' own task context menu — change status, priority, contexts, tags, dates, and more, using the exact same UI as everywhere else in TaskNotes.
• Find & focus — jump to any task in the chart from a fuzzy search (including tasks pulled in through relationships); the Gantt expands its parents, zooms, scrolls, and highlights it, without opening or editing it.

TaskNotes is the system of record: every write goes through its API (or its own modal/menu), so the Gantt and the rest of TaskNotes stay in sync.

Without TaskNotes (optional, read-only)

You can also use it as a read-only timeline over any Obsidian Base, with no TaskNotes installed: map start/end date properties in the view options and it renders your notes as bars. In this mode there is no write-back, no dependency arrows, and no status/priority coloring or icons — Bases has no task/dependency model to drive them. Bars still get the default hierarchy colors (or your Obsidian theme's), and the timeline & display features below all work. It's a viewer, not an editor.

Timeline & display (both modes)

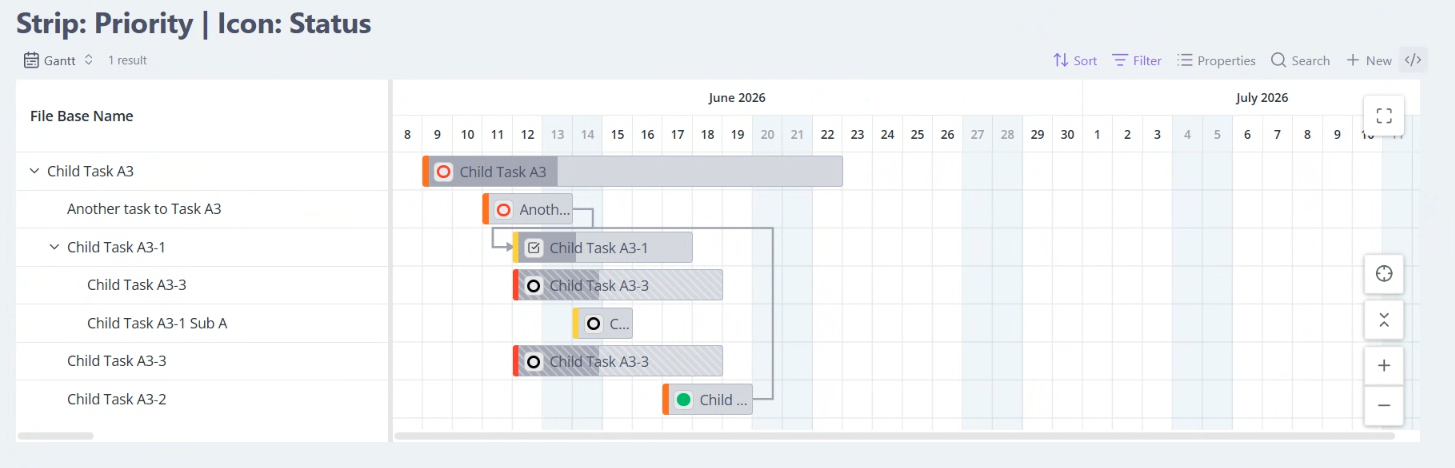

• Zoom the timeline by hours, days, weeks, or months, and weekend columns are shaded so a multi-day bar doesn't read as if the whole span were working time.

• Maximize within Obsidian — expand the chart to fill the window without pushing Obsidian's own modals, menus, command palette, or hover previews behind it.
• Resizable grid/timeline split that remembers its width, a configurable min/max height, sortable grid columns, and a view-settings menu grouped into collapsible sections.
• Missing-date handling — control how tasks with partial or no dates appear, with optional on-bar date-status indicators.
• In-app "What's New" — after an update, the release notes for the new version open once inside Obsidian; reopen them any time with the "Show release notes" command.

Requirements

• Obsidian 1.10.0+ (uses the official Bases API).
• The core Bases plugin enabled.
• TaskNotes — required for the companion (read/write) experience; optional for the read-only timeline.

Installation

Until the plugin is in the community store, install manually or via BRAT:

• Manual: download main.js, manifest.json, and styles.css from a release into <vault>/.obsidian/plugins/tasknotes-gantt/, then enable it in Settings → Community plugins.
• BRAT: add this repository in the BRAT plugin.

Usage

1. Create or open a Base over your task notes.
2. Add a view of type TaskNotes Gantt.
3. In the view options, confirm the start/end (and optional parent) property mappings. With TaskNotes, these default to scheduled / due; without it, point them at whatever date properties your notes use.

Transparency & disclosure

TaskNotes Gantt runs entirely on your device. It makes no network requests, contains no telemetry or analytics, and ships no remote/dynamically-executed code. Concretely:

• Vault read — reads the notes in your Base (and their frontmatter/metadata) through the Obsidian and Bases APIs to build the chart.
• Vault write — only in the TaskNotes companion mode. When you drag, resize, or create/delete a dependency on the chart, it writes the change back to the corresponding task note's frontmatter (dates and blockedBy edges) via TaskNotes' API. It only writes notes you act on; it never bulk-edits. In read-only (no-TaskNotes) mode it writes nothing.
• Vault enumeration — it resolves wikilinks and opens notes by path using vault.getAbstractFileByPath and metadataCache.getFirstLinkpathDest. It does not iterate or index your entire vault.
• In-process integration — when present, it calls the TaskNotes plugin's public JavaScript API in the same Obsidian process (no network).

Verifying build provenance

Release assets are built in GitHub Actions and carry a build-provenance attestation. You can verify a downloaded main.js was built from this repo's source:

gh attestation verify main.js --repo renatomen/tasknotes-gantt

Relationship to TaskNotes

TaskNotes Gantt is an independent companion plugin to TaskNotes by callumalpass — it is not an official part of TaskNotes. It integrates through TaskNotes' public companion-plugin JavaScript API (which is designed to support companions like this one). "TaskNotes" appears in the name to describe what the plugin pairs with.

License

MIT.
