feat(grok): decode the product breakdown on the grok.com billing path

[olddonkey]

What this PR does

Follow-up to #3988. The Grok "Usage breakdown" rows come only from the CLI credits proxy. When the grok CLI login is gone, CodexBar falls back to grok.com GetGrokCreditsConfig. That response carries the same per-product shares, but they were never decoded, so the rows silently disappear while the weekly bar stays.

This happened on a real account. At 07:53 UTC grok's silent token refresh got RefreshTokenRejected, and grok deleted ~/.grok/auth.json (grok's own log: "auth: cleared credentials after permanent refresh failure", "disk_mutation": "file deleted (no scopes left)"). From then on the card showed the bar without the breakdown until grok login.

This PR decodes the breakdown on the grok.com path too, with the same guard as the proxy path.

The wire shape

GetGrokCreditsConfig config (field 1) has the aggregate at [1, 1] and repeated [1, 7] entries {1: product id (varint), 2: percent (float, omitted when 0)}. Live response for the same account at the same moment the CLI proxy reported creditUsagePercent 6 = GrokChat 4 + GrokBuild 2:

1: fixed32 6.0
7: { 1: 4, 2: fixed32 4.0 }
7: { 1: 2, 2: fixed32 2.0 }

Only ids verified against live proxy samples are named: 2 = GrokBuild, 4 = GrokChat. Other ids we have seen (5, 7, 8) stay unnamed.

Rules

Products are decoded only from a single complete data frame whose aggregate is wire-published at [1, 1]. They go through the same all-or-nothing add-up guard as the proxy (moved to a shared GrokProductUsage.composing, with unchanged proxy behavior). The breakdown is dropped when:

• an entry is malformed, lacks an id, or repeats an id;
• a percent is negative or non-finite;
• an unnamed id has a nonzero share, because a share we can't label would make the list incomplete;
• the shares don't add up to the aggregate within 1 pp.

An unnamed id with a zero or omitted share is simply skipped. The aggregate, reset, and wire-published/implicit-zero flags are computed exactly as before; products never affect them or throw.

Proof

Live: grok.com GetGrokCreditsConfig fetched with the auth.json bearer (no cookies, no Keychain) and parsed by this branch:

surface: grok.com GetGrokCreditsConfig (bearer, gRPC-web)
fetched: 2026-09-26T21:58:06Z
usedPercent: 6.0 wirePublished: true
productUsage: ["GrokChat=4.0", "GrokBuild=2.0"]
primary: 6.0 secondary: nil tertiary: nil
section Usage breakdown: Grok Chat 4%, Grok Build 2%

Menu card: the production UsageMenuCardView rendered offscreen from that live snapshot with hidePersonalInfo on (how). There is no plan label or pace here, because this path has no tier or window duration. That is unchanged.

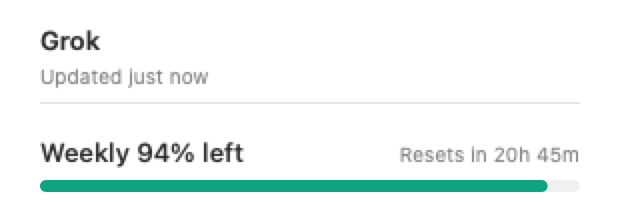

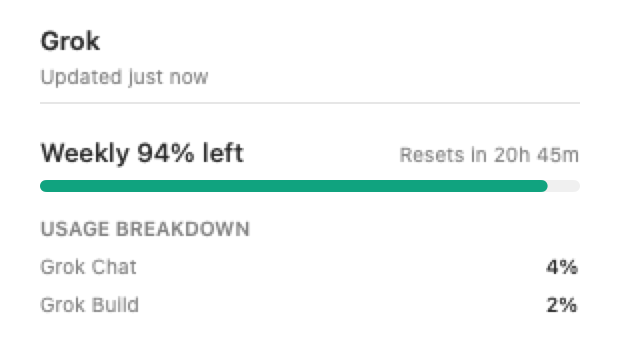

Before (main: grok.com path shows no breakdown)	After (this PR)

Tests

New GrokWebBillingProductUsageTests:

• The live grok.com response, verbatim (120 bytes including the trailer frame), decodes to [GrokChat 4, GrokBuild 2] and renders one bar plus the two rows.
• A routing test: the cookie fallback (GrokWebFetchStrategy) now shows the rows.
• Synthetic frames for each drop rule: unnamed nonzero id, missing or duplicate id, truncated entry, wrong wire types, negative or NaN percent, non-composing shares, implicit-zero payload, two data frames, and an aggregate that isn't [1, 1].
• Unnamed zero-share ids are skipped and unknown entry fields are ignored.
• Every case also asserts that the aggregate, reset, and flags equal the same payload without the [1, 7] entries.

Existing GrokCreditsProxyFetcherTests and GrokWebBillingFetcherTests pass unchanged.

Commands run:

• make check: 0 violations
• make test: exit 0; 129/129 groups passed on the first run (1,426 selections, 0 failures, 0 timeouts, 1,233 s) on d0a11a4aa; it merges cleanly with current main

🤖 Generated with Claude Code
