refactor(items): the original items' tooltip texts come from their data - #816
Merged
Mosch0512 merged 20 commits intoOct 23, 2026
Merged
Conversation
A "description" list in the item data: lines the tooltip shows for an item after its own, each with a text written like the item's name (plain English, or texts by language; "" is a blank line) and an optional tooltip color by name. Read, written (left out when empty), kept by the bmd import, and checked: a line longer than the tooltip's 99 characters gets a warning. The tooltip draws them in the UI's language. So a new item's text is data instead of another case in the tooltip code. No shipped item has one yet; the original items keep their texts in the tooltip code.
A description line longer than the tooltip's widest lines wraps there, measured with the tooltip's font, and a "\n" in a text breaks the line, so long texts need neither hand-split lines nor the 99-character limit and its warning, which go. Each piece keeps the line's color.
The fixed texts the tooltip code wrote for 15 items, one case each, are their item data's descriptions now: the jewels (Bless, Soul, Life, Chaos, Creation, Guardian, Harmony, Extension, Elevation), Gemstone, the refining stones, Devil's Eye and Key, and the Moonstone Pendant. Each text keeps all 11 UI languages, taken from Game.<lang>.resx; the 12 entries leave the resx files, since nothing else reads them (no accessor use, and no Lookup() range reaches their legacy ids). The lines the tooltip code computes from the item (wings, Guardian Angel, Imp, Town Portal scroll) stay code for now. A test checks that each of the 15 items has its text as its description, in every UI language.
This was referenced Oct 21, 2026
This was referenced Oct 21, 2026
…iptions # Conflicts: # src/source/Data/GameData/ItemData/ItemEnumNames.cpp # src/source/Data/GameData/ItemData/ItemEnumNames.h
…tip-texts-to-data # Conflicts: # src/Localization/Game.pl.resx
3 tasks done
It measured the whole line after every letter. A tooltip is built every frame while an item is hovered, and through the SDL_ttf renderer each measured prefix is a new text for the shared text cache, which empties itself when full. Now a line is measured when a word ends, and letter by letter only inside a word wider than a whole line. Compared with the old version on 200,000 random texts: the same lines, except where the old one left a line wider than the limit (a word too wide for a line, after a break), and about half the measure calls.
…ike names Review of sven-n#813: - A blank line inside a description text ("a\n\nb", or a leading "\n") wrote an empty row, and an empty row ends the tooltip in both renderers and in the height count: the rest of the tooltip was gone. A blank piece is now the tooltip's own blank row, "\n", as a blank line is. - The description stopped at TextList's end, but the rows after it are written unchecked, so a long description wrote past the array. TextList, TextListColor, TextBold and Size have 32 rows more than the original client's 50, and the description writes at most those 32: it never takes the room the rest of the tooltip needs. The files that declared the arrays themselves with 50 rows use ZzzInventory.h's declarations now. - The block is WriteItemDescriptionLines (rule 1), with the measure passed in, so a test can check its rows; the wrap width moved from the item data header to it, and the row width comes from TextList. - Description texts get the checks names get: the English text is required, a language code has only letters, digits and "-", and a language the game has no texts in is a warning. - The color names are in the anonymous namespace with the other tables, and a color without a name fails to compile.
… texts in the items design Review of sven-n#813: the description comes after the damage, defense and speed lines and before durability, the requirements and the options; the Dark Horse and Dark Raven show it only in shops. The items design records the split this step makes: an item's own tooltip texts are client-only fields of its item file (D15, D22, the field table), which the exchange file of phase 7 leaves out, and phase 8 goes in the steps of sven-n#815.
…tip-texts-to-data # Conflicts: # docs/item-data.md
…tip-texts-to-data
…s stay English sven-n#843 makes the item database's display locale the item names' language, which is English when "Translate item names" is off. The description read its texts in that locale, so the whole description turned English with the names. It is read in the UI's language now: only the names follow the option.
…tip-texts-to-data # Conflicts: # docs/item-data.md
Mosch0512
approved these changes
Oct 23, 2026
Mosch0512
left a comment
Mosch0512
left a comment
Collaborator
There was a problem hiding this comment.
Verdict: ready to merge once #813 lands. Everything below is non-blocking. I reviewed this step's own changes, against #813's branch. The move is exact:
- The texts: I compared every moved text (15 items × 11 languages) with the deleted
.resxentries by script. All 165 match, with no%escapes or special characters lost. No other item got a description, and no other item field changed. - Nothing else reads the removed texts:
- no accessor use is left, and no other file names them;
- no data file points at their ids, including the recipe texts in
mix.bmd, which I decoded; - no computed id reaches them; for example, the Kanturu event's
2170 + resultstops at 2177.
- Mapping and order: each removed case maps to the item number its data now uses,
ITEM_POTION + 160/161included. The texts sit where the code wrote them.
Non-blocking
- The test checks the English text, and that each language has some text, but not the translations themselves. With the
.resxentries deleted here, a copy mistake couldn't be caught later (inline, test_item_database_files.cpp:235). - Some moved texts carry machine-translation errors, for example the Portuguese Moonstone text's "EU IA." (inline, Group13_Helper.json:991).
- Three texts are written out twice, each with all 11 languages, until the shared texts of #827 (inline, Group14_Potion.json:2563).
- The test re-implements the file's
FindItemhelper (inline, test_item_database_files.cpp:264). - The
descriptionrow of the fields table is now one cell of about 1,700 characters (inline, item-data.md:114).
Note: the wrap fix I pushed to #813 (b9a7430) isn't in this branch yet. It comes in with your next merge of #813's branch.
What I checked: I read this step's diff, the tooltip code around the removed cases, and every I18N::Game::Lookup() call. I compared the item data with the deleted .resx entries in all 11 languages. I didn't build the client or run the game. CI: the Linux and macOS builds and Quality Gates pass.
| } | ||
|
|
||
| // The texts the tooltip code wrote for these items are their descriptions now, in every UI language. | ||
| TEST_CASE("The original items' tooltip texts are in their descriptions [data][items]") |
Collaborator
There was a problem hiding this comment.
Non-blocking. This checks each item's English text, and that every UI language has some text. It doesn't check that the translations are the ones the deleted .resx entries had. Since this PR deletes those entries, nothing in the repo can catch a copy mistake later, for example the two refining stones' German texts swapped. The roadmap's D26 and section 4 of the items design ask that a move from code into data is compared with the old code.
I compared all 15 items × 11 languages with the deleted entries by script, and they match exactly, so nothing is wrong today. Saying in the description how the texts were checked against the .resx files would leave a record, since the comparison can't be repeated after this PR.
The description's row in the fields table had grown to one cell of about 1,700 characters. The row now says what the field is and links to a Descriptions section, which has the line format, an example and what the tooltip does with the lines.
Collaborator
|
I pushed two small commits for two of the review's points to this branch, so please pull before your next push:
The later steps of the stack change that |
This file contains hidden or bidirectional Unicode text that may be interpreted or compiled differently than what appears below. To review, open the file in an editor that reveals hidden Unicode characters.
Learn more about bidirectional Unicode characters
Sign up for free
to join this conversation on GitHub.
Already have an account?
Sign in to comment
Add this suggestion to a batch that can be applied as a single commit.This suggestion is invalid because no changes were made to the code.Suggestions cannot be applied while the pull request is closed.Suggestions cannot be applied while viewing a subset of changes.Only one suggestion per line can be applied in a batch.Add this suggestion to a batch that can be applied as a single commit.Applying suggestions on deleted lines is not supported.You must change the existing code in this line in order to create a valid suggestion.Outdated suggestions cannot be applied.This suggestion has been applied or marked resolved.Suggestions cannot be applied from pending reviews.Suggestions cannot be applied on multi-line comments.Suggestions cannot be applied while the pull request is queued to merge.Suggestion cannot be applied right now. Please check back later.
This step's own changes: compare with #813. The diff of this PR also holds every earlier step of #815, since a PR from a fork can only target this repository's branches.
Summary
Step 2 of 6 of #815 (data-driven item tooltips). Stacked on #813: the first commits here are #813's. Only the last commit,
refactor(items): the original items' tooltip texts come from their data, is this step, and this PR will be rebased once #813 merges.The fixed texts the tooltip code wrote for 15 original items, one
if (ip->Type == …)case each inRenderItemInfo(), are now these items'descriptions in the item data:Game.<lang>.resx, written like item names (English first).ZzzInventory.cpp;.resxentries, in every language. Nothing else reads them: no accessor use is left, and noI18N::Game::Lookup()range reaches their legacy ids (572–574, 619, 621, 637, 1289, 2207–2210, 3305; an unknown id givesLookup's fallback).ItemStats.jsonvalues, steps 3 and 4 of [Architecture] Data-driven item tooltips: texts, placeholders and values from the item data (phase 8) #815.What changes in game

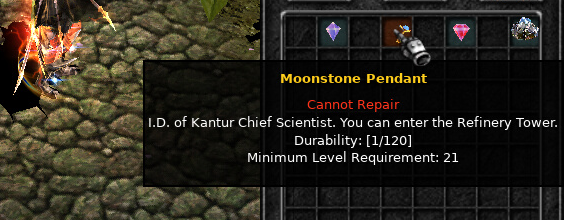

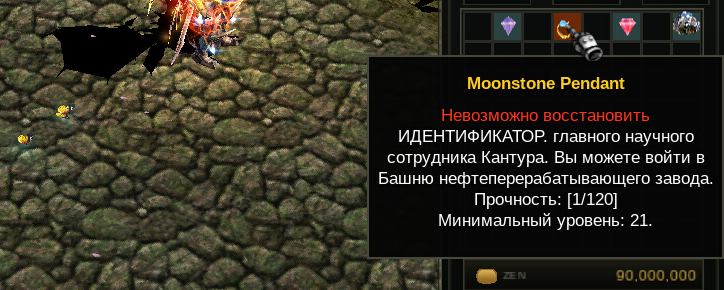

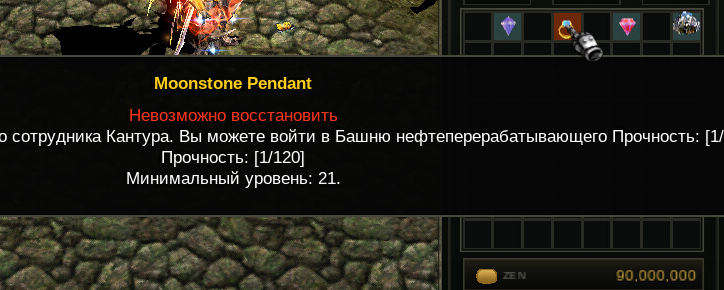

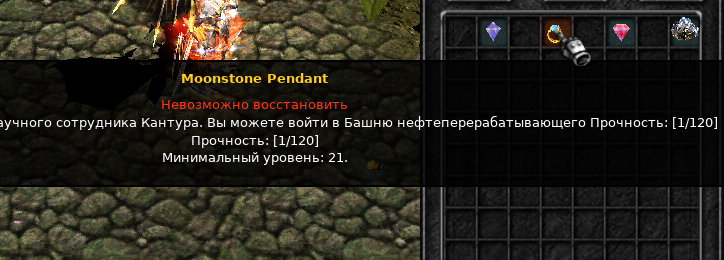

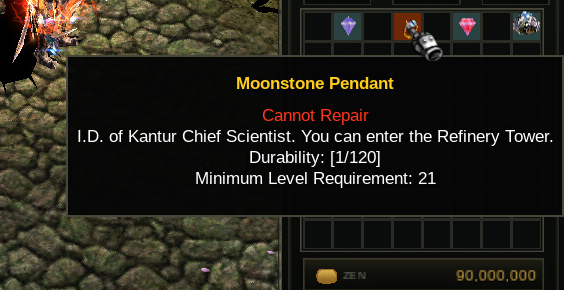

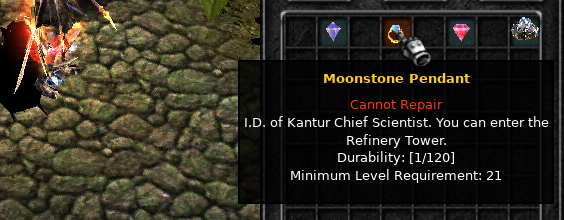

The tooltips look as before, in both themes, with one difference: a description line wraps at the tooltip's width (#813). So a text wider than that now breaks onto a second line instead of making the box wider.
Screenshots

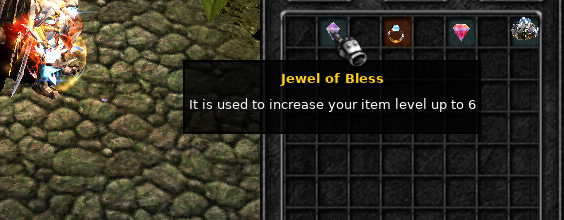

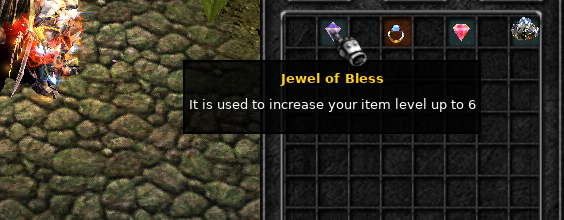

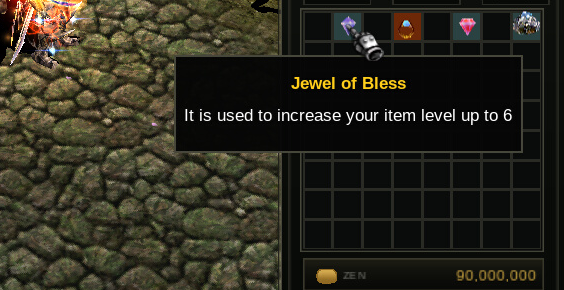

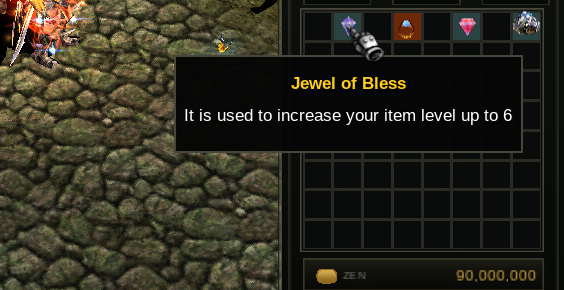

Jewel of Bless: the same before and after.
The item data of the "after" images (14,13)
src/bin/Data/Items/Group14_Potion.json:{ "number": 13, "name": { "en": "Jewel of Bless", "de": "Juwel des Segens", "es": "Joya de Bendición", "pt": "Joia da bênção" }, "tags": ["jewel", "valuable"], "description": [ { "text": { "en": "It is used to increase your item level up to 6", "de": "Wird verwendet, um das Gegenstandslevel auf bis zu 6 zu erhöhen", "es": "Se utiliza para aumentar el nivel de tu objeto hasta 6.", "id": "Ini digunakan untuk meningkatkan level item Anda hingga 6", "ja": "アイテムレベル6にUP時に使用", "pl": "Służy do podniesienia poziomu przedmiotu do 6", "pt": "É usado para aumentar o nível do seu item até 6", "ru": "Используется для повышения уровня вашего предмета до 6.", "tl": "Ginagamit ito upang taasan ang antas ng iyong item hanggang 6", "uk": "Він використовується для підвищення рівня вашого предмета до 6", "zh-TW": "它用於將您的物品等級提高到 6" } } ] … }Moonstone Pendant, English: the line wraps.

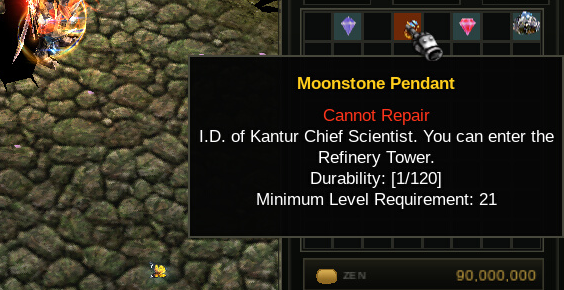

The item data of the "after" images (13,38)
src/bin/Data/Items/Group13_Helper.json:{ "number": 38, "name": { "en": "Moonstone Pendant", "de": "Mondsteinanhänger", "es": "Pendiente de Piedra Lunar", "pt": "Pingente da pedra da lua" }, "description": [ { "text": { "en": "I.D. of Kantur Chief Scientist. You can enter the Refinery Tower.", "de": "Ausweis des Chefwissenschaftlers von Kantur. Sie können den Raffinerieturm betreten.", "es": "IDENTIFICACIÓN. del científico jefe de Kantur. Puedes ingresar a la Torre de la Refinería.", "id": "PENGENAL. dari Kepala Ilmuwan Kantur. Anda bisa memasuki Menara Kilang.", "ja": "カントルの首席研究員たちの入出許可証。精製の塔へ入ることが出来ます。", "pl": "ID. głównego naukowca Kantur. Możesz wejść do Refinery Tower.", "pt": "EU IA. do Cientista Chefe Kantur. Você pode entrar na Torre da Refinaria.", "ru": "ИДЕНТИФИКАТОР. главного научного сотрудника Кантура. Вы можете войти в Башню нефтеперерабатывающего завода.", "tl": "I.D. ng Kantur Chief Scientist. Maaari kang pumasok sa Refinery Tower.", "uk": "І.Д. головного наукового співробітника Кантур. Ви можете увійти до вежі нафтопереробного заводу.", "zh-TW": "ID。坎圖爾首席科學家。您可以進入煉油塔。" } } ] … }Moonstone Pendant, Russian: before, the box runs off the screen and the text runs into the durability line; after, it wraps inside the box.

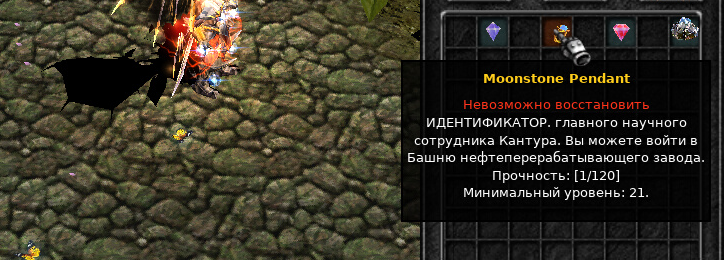

The item data of the "after" images (13,38)
src/bin/Data/Items/Group13_Helper.json:{ "number": 38, "name": { "en": "Moonstone Pendant", "de": "Mondsteinanhänger", "es": "Pendiente de Piedra Lunar", "pt": "Pingente da pedra da lua" }, "description": [ { "text": { "en": "I.D. of Kantur Chief Scientist. You can enter the Refinery Tower.", "de": "Ausweis des Chefwissenschaftlers von Kantur. Sie können den Raffinerieturm betreten.", "es": "IDENTIFICACIÓN. del científico jefe de Kantur. Puedes ingresar a la Torre de la Refinería.", "id": "PENGENAL. dari Kepala Ilmuwan Kantur. Anda bisa memasuki Menara Kilang.", "ja": "カントルの首席研究員たちの入出許可証。精製の塔へ入ることが出来ます。", "pl": "ID. głównego naukowca Kantur. Możesz wejść do Refinery Tower.", "pt": "EU IA. do Cientista Chefe Kantur. Você pode entrar na Torre da Refinaria.", "ru": "ИДЕНТИФИКАТОР. главного научного сотрудника Кантура. Вы можете войти в Башню нефтеперерабатывающего завода.", "tl": "I.D. ng Kantur Chief Scientist. Maaari kang pumasok sa Refinery Tower.", "uk": "І.Д. головного наукового співробітника Кантур. Ви можете увійти до вежі нафтопереробного заводу.", "zh-TW": "ID。坎圖爾首席科學家。您可以進入煉油塔。" } } ] … }The Jewel of Soul and the Gemstone were checked the same way and are unchanged in English.
Related issues
Step 2 of #815. Builds on #813 (step 1).
Checklist
docs/CODING_RULES.md.docs/build/README.md). Windows x64 Release; all 978 tests pass, including the newThe original items' tooltip texts are in their descriptions. Changed lines pass clang-format 21.1.8 as CI checks them. In game (Release x64 against a local OpenMU), the tooltips of the Jewel of Bless, Jewel of Soul, Gemstone and Moonstone Pendant were compared before and after in both themes, and the Moonstone Pendant also in Russian.
