This step's own changes: compare with #824. The diff of this PR also holds every earlier step of #815, since a PR from a fork can only target this repository's branches.

Summary

Step 5b-3b of #815 (data-driven item tooltips; design). Stacked on #824 (→ #823 → … → #813): only the last three commits are this step.

The tooltip's durability block is data now. It was one condition with about 20 item exceptions, followed by a chain of 25 branches by item type, and it's down to one line of code: the Talisman of Mobility's saved location.

The commits

1. test(items): the tooltip snapshot also records a count and a timed item, before anything moves. "Every item's tooltip is as recorded" only recorded full durability and items that aren't timed, which missed the branches this step moves. Potions have no durability in their data, so their count was never shown, and a pet's "Life" line is hidden when it's timed. This commit added two variants, count (durability 3) and timed (expired). After review, test(items): every item's tooltip in a test, against recorded hashes #822 records eleven variants that cover both (durability 1 and 0, and expired), so they're merged into those: the snapshot here is recorded with the eleven.
2. feat(items): the tooltip's durability lines come from the data: the move. Against commit 1, every tooltip is unchanged except the 10 lucky item tickets (below). That was 91,104 tooltips per hero with the six variants of then, both in the test and in the game's tooltip-snapshot; with test(items): every item's tooltip in a test, against recorded hashes #822's eleven variants (160,336 per hero), the full tooltip text against feat(items): the tooltip's stat lines come from a tooltip layout #824 changes only for the 10 lucky item tickets and, from commit 3, the nine tickets with "usable 10 times".
3. fix(items): "usable 10 times", with its space and translated: a text fix, re-recorded on its own.

How

• The standard line is in the default layout:

  {"text": "@durability", "when": ["hasDurability", "!timed", "!tag:noDurabilityLine"]}

  hasDurability is the old rule as a state: groups 0–11 and 13 with a durability, plus the wings and capes 12/0–6, 12/36–43 and 12/49–50.

• The other lines are in the items' own descriptions, which come right before the durability block. So each line keeps its place:

  Items	Line
  24 potions and jewels	{"text": "@numberOfItems", "when": ["durability"]}
  Arrows, bolts	{"text": "@numberOfItems"}
  13 pets	{"text": "@life", "when": ["!timed"]}
  7 tickets	{"text": "@usableTimes"}; the Varka tickets add their weekday line
  Splinter of Armor, Bless of Guardian, Claw of Beast	{"text": {"en": "{durability} / 20"}} (/ 10)
  Wizard's Ring	{"text": "@durability", "when": ["!timed", "level!=1", "level!=2"]}
  Chaos Castle ticket	@durability when !timed, @usableTimes when timed
  Rena	@numberOfItems at levels: [3, 3]
  Talisman of Mobility	its two texts, when: ["durability=2"] / ["durability=1"]
  Transformation Ring, Talisman of Luck, the 11 wing-mix charms, the 10 lucky item tickets	their texts, with translations

• noDurabilityLine: this tag replaces the old exception list. 57 items have a durability but not the standard line, and each one is now visible in its own data.

New in the data

• Description lines take a shared text of Tooltip.json ("@life") and conditions ("when", as a layout line's).
  • A missing shared text, or one whose placeholders a description can't fill, is a load error, with a suggestion for a typo.
  • The "unused shared text" warning now counts descriptions too.
• Comparisons in conditions: "durability=2", "level!=1", with =, !=, <, <=, >, >= against a whole number. Comparing a state, or a typo, is a load error.
• States: hasDurability, timed.
• Tag: noDurabilityLine.

Tooltips that changed, on purpose

The 10 lucky item tickets: after their blue text and blank line, the old code wrote one more line, left empty. The tooltip stops drawing at an empty line (RenderTipTextList(), and the modern theme too), and only blank lines came after it, so the tooltip looks the same; the recorded lines lose the empty one. (Corrected: this said "full height, half a line shorter" before; #830 found that the drawing stops there.) Recorded lines, <color> <text>:

 before                                       after
   1 You can achieve special items with ...     1 You can achieve special items with ...
   0 <blank>                                    0 <blank>
   0                                            (gone)

"usable %dtimes" (commit 3):

• English and Spanish ran the number into the word ("usable 10times").
• Russian and Tagalog ran it in too, and left "times" in English.
• Polish already read "do użycia 10 razy" and doesn't change.
• Indonesian read "time 10 that can be used".

They're fixed in Tooltip.json and in the .resx, which the Chaos Castle ticket and the Santa Village invitation still use.

Wrapping (commit 2): a description line wraps at the description's width, while the old code wrote each of these texts as one row. So a few long translations now take two rows, as every other description does:

• the Talisman of Mobility's two texts in Polish, Russian, Tagalog and Ukrainian;
• the Master Seal of Ascension's (13/93) text in Polish;
• the lucky tickets' text in German.

English is short enough not to wrap, so the recorded snapshot (in English) doesn't show it.

Removed

• The .resx texts only the durability block used:

  • Durability: [%d]
  • %d%% Combination success rate increase
  • the Varka tickets' two weekday texts
  • the Talisman of Mobility's two texts

  The rest stay: other code uses them, including the charms' numbered texts, which the second item chain also reads (feat(items): the second item chain's cases with values come from the data #829 moves that one).

• IsCharacterCard(), which nothing calls now.

Not done

• "usable 1 times": the singular could be a second text with "when": ["durability=1"], but each language needs its own form. That's for a separate change if wanted.
• The design changed: layouts chosen by match rules, with a per-item "tooltip" override, aren't needed. A layout per item kind would have repeated the 36 stat lines, while per-item description lines with conditions cover every case. The design comment on [Architecture] Data-driven item tooltips: texts, placeholders and values from the item data (phase 8) #815 is updated.

Screenshots

Before (#824 plus the snapshot commit) and after this PR, for a level 400 Dark Knight. They look the same, except the Doppelganger ticket's text fix. The lucky item tickets, the one other visible change, aren't in OpenMU's Season 6 item data, so they're shown as their recorded lines below instead.

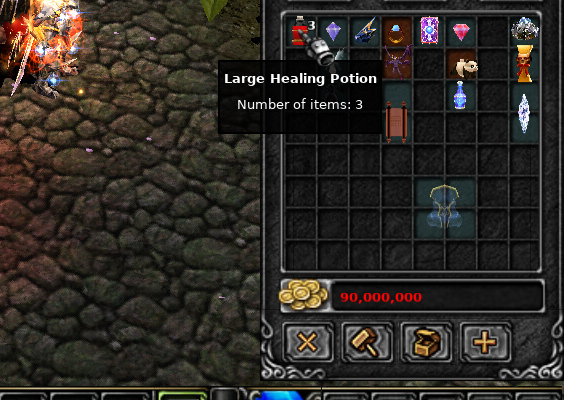

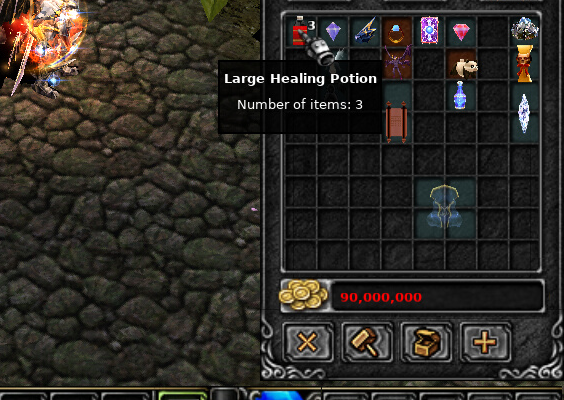

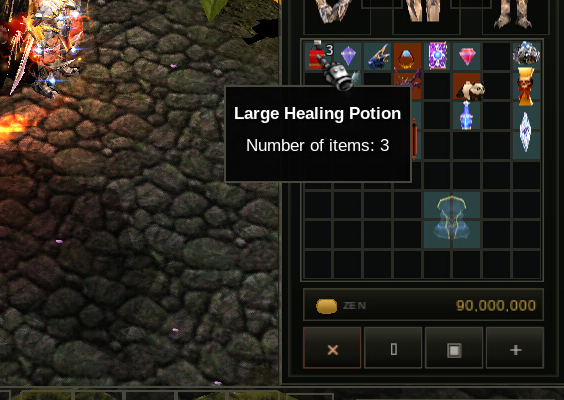

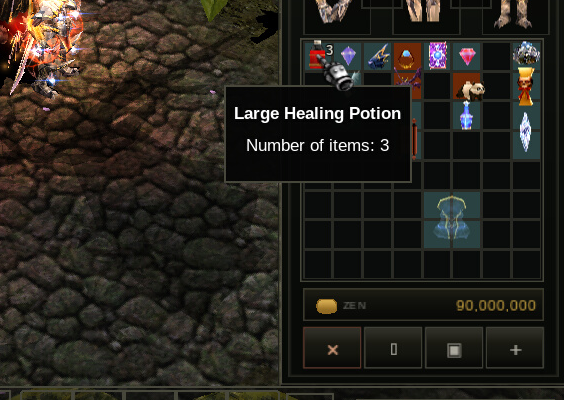

Large Healing Potion ×3

A stack's count, from its description (@numberOfItems, when: [durability]).

	Legacy theme	Modern theme
Before
After

The item's data (number, name, tags, description)

{
  "number": 3,
  "name": {
    "en": "Large Healing Potion"
  },
  "tags": [
    "healingPotion"
  ],
  "description": [
    {
      "text": "@numberOfItems",
      "when": [
        "durability"
      ]
    }
  ]
}

Its shared texts in Tooltip.json (English):

"numberOfItems": "Number of items: {durability}"

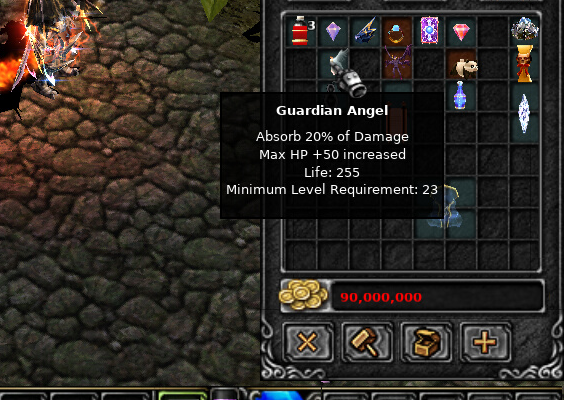

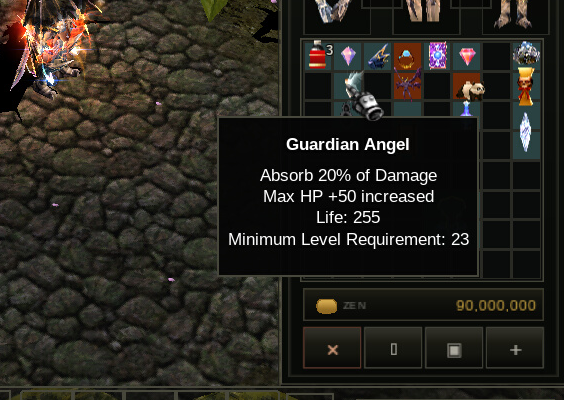

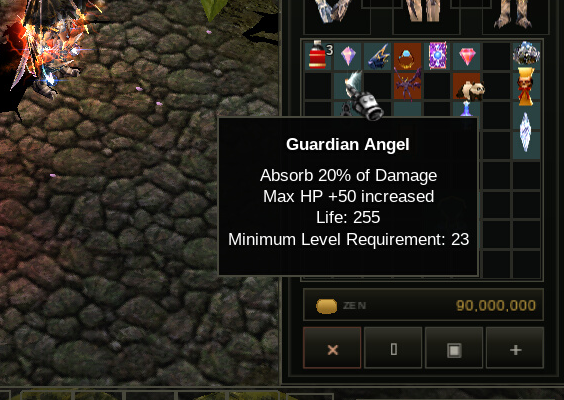

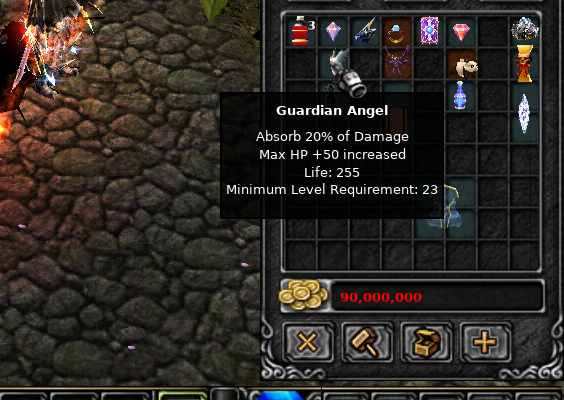

Guardian Angel

A pet's life after its step-4 lines (@life, when: [!timed]), with the tag noDurabilityLine.

	Legacy theme	Modern theme
Before
After

The item's data (number, name, tags, description)

{
  "number": 0,
  "name": {
    "en": "Guardian Angel"
  },
  "tags": [
    "noDurabilityLine"
  ],
  "description": [
    {
      "text": {
        "en": "Absorb 20% of Damage",
        "de": "Absorbiert 20% des Schadens",
        "es": "Absorber daño 20% of",
        "id": "Menyerap Kerusakan 20% of",
        "ja": "ダメージ 20%吸収",
        "pl": "Pochłania 20% obrażeń",
        "pt": "Absorver Dano 20% of",
        "ru": "Поглощение 20% of урона",
        "tl": "Isipsip ang 20% of Pinsala",
        "uk": "Поглинання шкоди 20% of",
        "zh-TW": "吸收20% of傷害"
      }
    },
    {
      "text": {
        "en": "Max HP +50 increased",
        "de": "Max. HP +50 erhöht",
        "es": "HP máximo +50 aumentado",
        "id": "HP Maks +50 meningkat",
        "ja": "最大生命力 +50増加",
        "pl": "Zwiększono maksymalne HP +50",
        "pt": "HP máximo +50 aumentado",
        "ru": "Макс. HP +50 увеличен.",
        "tl": "Tumaas ang Max HP +50",
        "uk": "Макс HP +50 збільшено",
        "zh-TW": "最大生命值+50增加"
      }
    },
    {
      "text": "@life",
      "when": [
        "!timed"
      ]
    }
  ]
}

Its shared texts in Tooltip.json (English):

"life": "Life: {durability}"

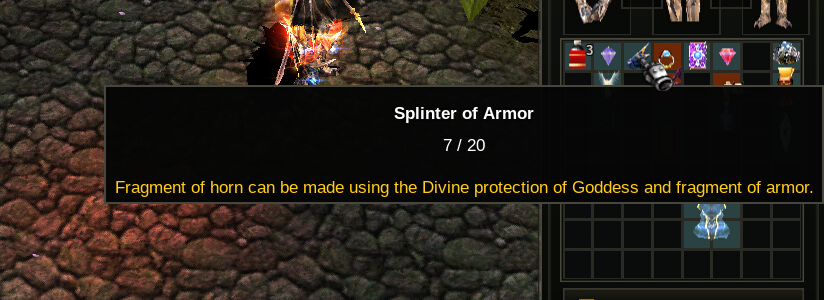

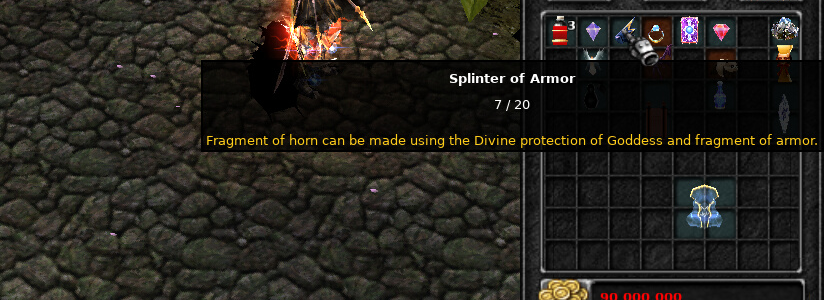

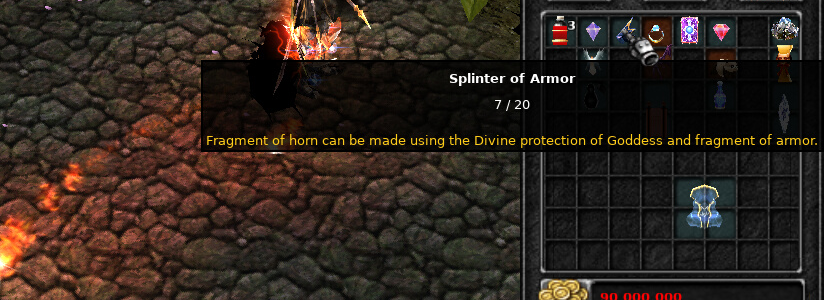

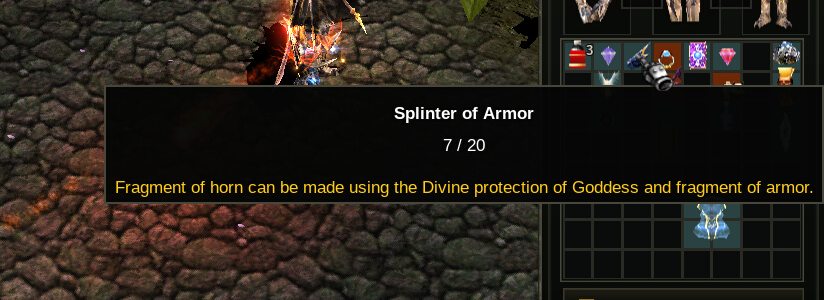

Splinter of Armor at 7

Pieces to collect, a text written in place: {durability} / 20.

	Legacy theme	Modern theme
Before
After

The item's data (number, name, tags, description)

{
  "number": 32,
  "name": {
    "en": "Splinter of Armor"
  },
  "tags": [
    "noDurabilityLine"
  ],
  "description": [
    {
      "text": {
        "en": "{durability} / 20"
      }
    }
  ]
}

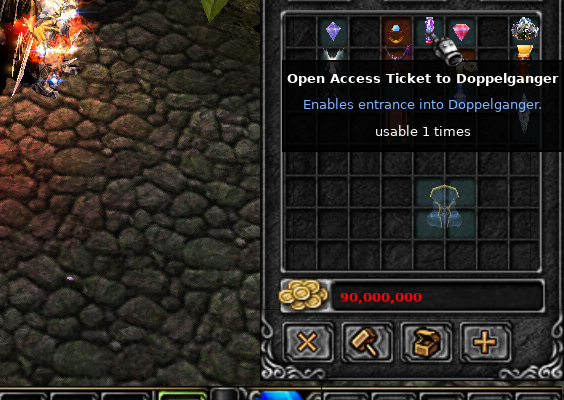

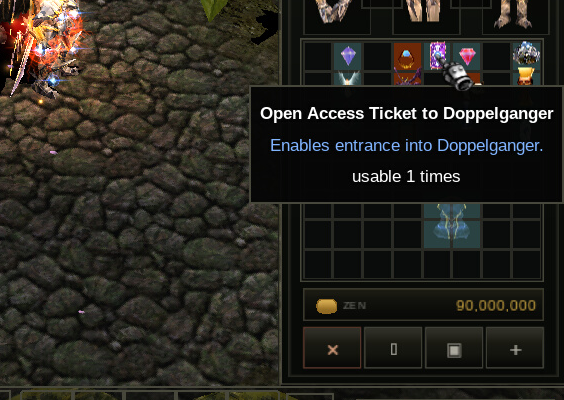

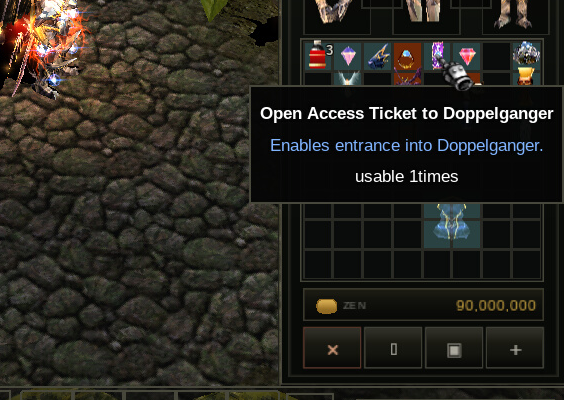

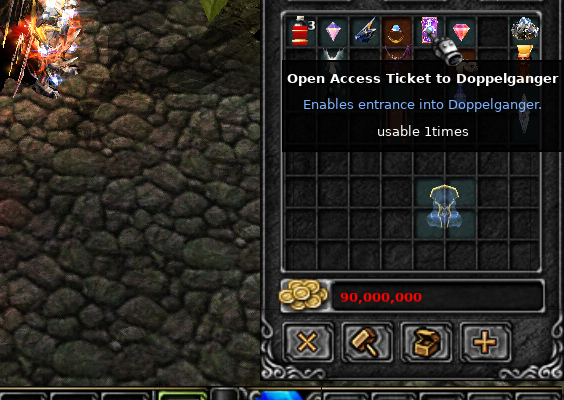

Open Access Ticket to Doppelganger

@usableTimes, which reads "usable 1 times" now instead of "usable 1times" (the fix commit).

	Legacy theme	Modern theme
Before
After

The item's data (number, name, tags, description)

{
  "number": 125,
  "name": {
    "en": "Open Access Ticket to Doppelganger"
  },
  "tags": [
    "cashShop",
    "noDurabilityLine"
  ],
  "description": [
    {
      "text": "@usableTimes"
    }
  ]
}

Its shared texts in Tooltip.json (English):

"usableTimes": "usable {durability} times"

Related issues

Step 5b-3b of #815. Builds on #824, #823, #822, #821, #820, #819, #818, #817, #816 and #813.

Checklist

• I have read and followed docs/CODING_RULES.md.
• I have built the project locally (see docs/build/README.md).
  • Windows x64 Release: all 1004 tests pass.
  • New tests cover comparisons, the description text checks and the moved warning.
  • The recorded tooltip test changes only as described above.
  • Changed lines pass clang-format 21.1.8 as CI checks them.
  • In game: tooltip-snapshot of two heroes before and after, and the screenshots above in both themes.
• Changes are focused on one concern; the diff is as small as it reasonably can be.

[ezequielzacca]

Thanks, fixed in 8a2fea0. ReadComparison now parses the number with std::from_chars into an int and requires the parse to use up the rest of the text, so every int can be written, from -2147483648 to 2147483647. The condition test adds both bounds, plus inputs that must fail: one past each bound, eleven digits, +2, --2, a lone -, an empty number, spaces before or after, 2x and 1.5. docs/item-data.md now states the range.

#822 now records eleven snapshot variants, after review there. They cover this PR's count and timed (expired) variants, so those two are gone and this PR's snapshot is re-recorded with the eleven. I diffed the full tooltip text against #824: the only changes are the 10 lucky item tickets and the "usable 10 times" fix on the nine tickets that show it, as described above. I've updated the description's first point to match.

[ezequielzacca]

#824 is merged, so I merged main into this branch (a normal merge commit, no history rewrite, since this PR has a review).

#824 landed as a rebuilt history, so I resolved the conflicts by applying this PR's own changes onto main:

• The layout states this PR moved into ItemTooltipConditions.cpp now include feat(items): the tooltip's stat lines come from a tooltip layout #824's strengthRequired and dexterityRequired.
• The Talisman of Mobility line this PR moved out of the durability block keeps main's IsPortalPositionSaved() check.
• The layout test keeps feat(items): the tooltip's stat lines come from a tooltip layout #824's sceptre tag case (noDamageLine is gone) next to this PR's comparison checks.
• The item JSON layout uses main's LayOutItemJsonText with this PR's when lists.
• AreTooltipConditionsMet is qualified with main's Engine::Items::TooltipValues namespace.

Checked: Windows x64 Release with the editor; all 1482 tests pass, and the tooltip snapshot is unchanged. test_item_database_files passes in three random orders, and the quality gate passes.

[Mosch0512]

Verdict: changes requested for one item; the rest is non-blocking. Moving the durability block into data is right:

• Each old branch has its replacement. I mapped every branch of the old block to the new data:

  • the standard line and its hasDurability state, which is the old bDurExist rule with the same precedence;
  • the 57 noDurabilityLine items;
  • the description lines of the potions, arrows, pets, tickets, charms and talismans.

  The exclusions without a tag (Loch's Feather, the fruits, the character cards, the elixirs) show no line either, since they have no durability in their data or are outside groups 0 to 11 and 13.

• The Talisman of Mobility's saved location keeps its place. Nothing is written between the description and the new code for that item, and main's IsPortalPositionSaved() guard is kept.

• The merge with main keeps #824's fixes. The Polish texts, the removed noDamageLine and locale helpers, strengthRequired/dexterityRequired and main's formatting of the #824 blocks are all still there.

• The removed .resx ids are safe. Nothing else looks up 95, 2296, 2605, 2606, 3105 or 3106, by name or by a computed id.

Required

• Three items lose their Japanese counter (inline, Group13_Helper.json:1434).

Non-blocking

• Long translated lines now wrap (inline, Group13_Helper.json:2979).
• Two comments say a condition can read a stat file table again (inline, ItemTooltipConditions.h:24).
• Untouched blocks of ZzzInventory.cpp are reformatted, and its BOM is dropped (inline, ZzzInventory.cpp:3201).
• The description reader copies the layout reader's condition loop (inline, ItemJsonFormat.cpp:464).
• "@" alone is a silent blank line in a description (inline, ItemJsonFormat.cpp:430).
• A table used only by a shared text isn't seen by the table checks (inline, ItemDataValidation.cpp:639).
• The old-code comparison tests now skip every line with a condition (inline, test_item_database_files.cpp:547).

Before merging (not code)

• The PR text says Polish ran the number into "times". Main's Polish .resx already reads "do użycia %d razy", and the Polish tooltips don't change here.

What I checked:

• every branch of the old durability block against the new data and conditions;
• the merge resolution against main's #824 (the files #824 touched and its review fixes);
• every Lookup by number or computed id for the removed ids;
• the editor code that reads or copies item descriptions (nothing drops textName or when).

I also compared every item's tooltips in all 11 languages: a local test (not pushed) wrote each item's tooltips in each language for the new Dark Wizard, 176 per item, built once on main and once on this branch. The full text of each differing item showed:

• the "usable … times" fix in English, Spanish, Indonesian, Russian and Tagalog, and the lucky tickets, as described;
• the two findings below on Japanese and on wrapping;
• no other change in any language.

Built on Windows x64 Debug with the editor and the control socket: test_item_database_files passes whole, 222 of 222, in file order and three random orders, and so do test_item_database, test_control_tooltip_commands and test_control_protocol. I didn't run the game.

[Mosch0512]

Required. The Splinter of Armor, the Bless of Guardian (line 1464) and the Claw of Beast (line 1494) now have only an English text, "{durability} / 20" (/ 10). The old code printed I18N::Game::DD, which is "%d / %d" in every language but Japanese, where it's "%d個/ %d個". With the UI in Japanese, the tooltip changes:

main:  1個/ 20個
here:  1 / 20

Adding "ja": "{durability}個/ 20個" (and / 10個) to the three texts keeps it. The recorded snapshot runs in English, so no test sees it. These three are the only new in-place texts without translations; the other 23 have all 11 languages.

[ezequielzacca]

Fixed in c4b2e84: the three texts have "ja": "{durability}個/ 20個" (/ 10個 for the Claw of Beast), the old I18N::Game::DD's Japanese form. Other languages read the English text, which is the same %d / %d as before.

[Mosch0512]

Non-blocking. Description lines wrap at the description width, while the old code wrote each of these texts as one row. So long translations now take two rows:

• the Talisman of Mobility's two texts in Polish, Russian, Tagalog and Ukrainian;
• the Master Seal of Ascension's (13/93) text in Polish;
• the lucky tickets' text in German.

From the language comparison, Polish:

main:  Zapisuje lokalizację po kliknięciu prawym przyciskiem myszy.
here:  Zapisuje lokalizację po kliknięciu prawym
       przyciskiem myszy.

English is short enough not to wrap, so the snapshot doesn't show it. Wrapping is how every other description behaves, so it's probably fine. But the PR says every other tooltip is unchanged, so it's worth listing.

[ezequielzacca]

Listed in the PR text now, under the tooltips that changed: the Talisman of Mobility in Polish, Russian, Tagalog and Ukrainian, the Master Seal of Ascension in Polish, and the lucky tickets in German. I kept the wrapping, since it's how every other description behaves.

[Mosch0512]

Non-blocking. This says a value condition can be "a table of the item stat file", and so does AreTooltipConditionsMet's comment (ItemTooltipValues.h:83). #824's review removed that claim, because a condition can't name a table. Here, ReadTooltipCondition stops the name at the : of "table:x", so it's refused with "compares no built-in value". The merge brought the old wording back.

[ezequielzacca]

Fixed in c4b2e84: both comments (TooltipCondition::Kind::Value and AreTooltipConditionsMet) say a built-in value or {level} again, as #824's review left them.

[Mosch0512]

Non-blocking. Three blocks this PR doesn't otherwise change are reformatted:

• the chocolate boxes (3198–3211);
• the Box of Luck (3216–3229);
• the Armor of Guardsman's Chaos Castle table (3278–3315).

Line 1 also loses the file's UTF-8 BOM. With /utf-8 on MuClient the Korean literals still compile the same, so it's harmless. But these blocks add unrelated lines to the diff, as the ones #824 reverted did.

[ezequielzacca]

Fixed in c4b2e84: the chocolate boxes, the Box of Luck and the Armor of Guardsman's Chaos Castle table are back to main's formatting, and the BOM is back, so the file's diff is only this PR's change.

[Mosch0512]

Non-blocking. ReadDescriptionConditions is the same loop as ItemTooltipReader::ReadConditions: a list check, a string check per entry, ReadTooltipCondition, push. Only the error messages differ slightly. A shared ReadTooltipConditions(json, field, conditions, addError) next to ReadTooltipCondition would keep the two readers from drifting.

[ezequielzacca]

Done in c4b2e84: ReadTooltipConditions sits next to ReadTooltipCondition (in ItemTooltipConditions.cpp, declared in a small ItemTooltipConditionsJson.h so the headers that include the conditions don't take in the JSON library). Both readers call it; the error texts are unchanged.

[Mosch0512]

Non-blocking. A description text of just "@" gives an empty textName:

• ValidateDescriptionTexts skips empty names;
• the tooltip writes the line as a blank line.

So a typo like {"text": "@"} loads without a message. In a layout, the same text is an error ("@" is not a text of "texts"). An empty name after the @ could be the same error here.

[ezequielzacca]

Fixed in c4b2e84: "@" alone is an error now ("names no text"), as in a layout. A test covers it and a named one.

[Mosch0512]

Non-blocking. A shared text used by a description may have a {table:…} placeholder; this check allows it. But the table checks only look at the descriptions' own texts:

• ValidateTableUses warns about the table as unused;
• the editor's table counts (DescriptionNamesTable, FindTableDescriptionUsers) don't count it, so the Formulas window offers to delete it;
• RenameTableInDescriptions leaves the shared text with the old name, which makes the next load fail.

No shipped shared text uses a table today. Refusing tables in shared texts would keep that true until the table checks know about them.

[ezequielzacca]

Done in c4b2e84, as you suggest: a description's shared text takes built-in values only, with an error saying a table goes in the item's own text, where the table checks see it. ValidateDescriptionTexts doesn't need the stat profiles anymore, so it lost that parameter. The shared-text test checks a table.

[Mosch0512]

Non-blocking. Both old-code comparison tests now skip every description line with a when or a shared text (also line 409). Today those are exactly the durability lines. But a later non-durability line with a condition would drop out of the comparison silently. Skipping by what the line is (the shared texts and the durability conditions this PR adds) would keep the tests' reach.

[ezequielzacca]

Fixed in c4b2e84: both tests skip by what the line is: IsDurabilityLine is a shared text or a line shown by the item's durability (durability, durability=2, ...). A later line with another condition stays in the comparison.

[ezequielzacca]

Thanks for the thorough review. Pushed c4b2e84 as a new commit on top (no history rewrite):

• Required: the three texts keep their Japanese counter.
• Non-blocking, done:
  • the wrapping is listed in the PR text;
  • the two comments no longer claim stat tables;
  • ZzzInventory.cpp's untouched blocks and its BOM are as on main;
  • both readers share ReadTooltipConditions;
  • "@" alone is an error;
  • shared texts take built-in values only;
  • the old-code tests skip just the durability lines.
• PR text: the Polish claim is corrected (it already read "do użycia %d razy" and doesn't change), and the Russian and Tagalog line now says they also ran the number in.
• Checked: Windows x64 Release with the editor and the control socket: all 1483 tests pass, test_item_database_files in three random orders, and the quality gate.
